RTD M12 Extension Cable 4 Wire Right Angle Female Connector - 5 Meter (16.5ft) Long Cable

Evosensors

$45.00
SKU: UW4-FPXX-24S-STWL-5.0M-M2FR

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

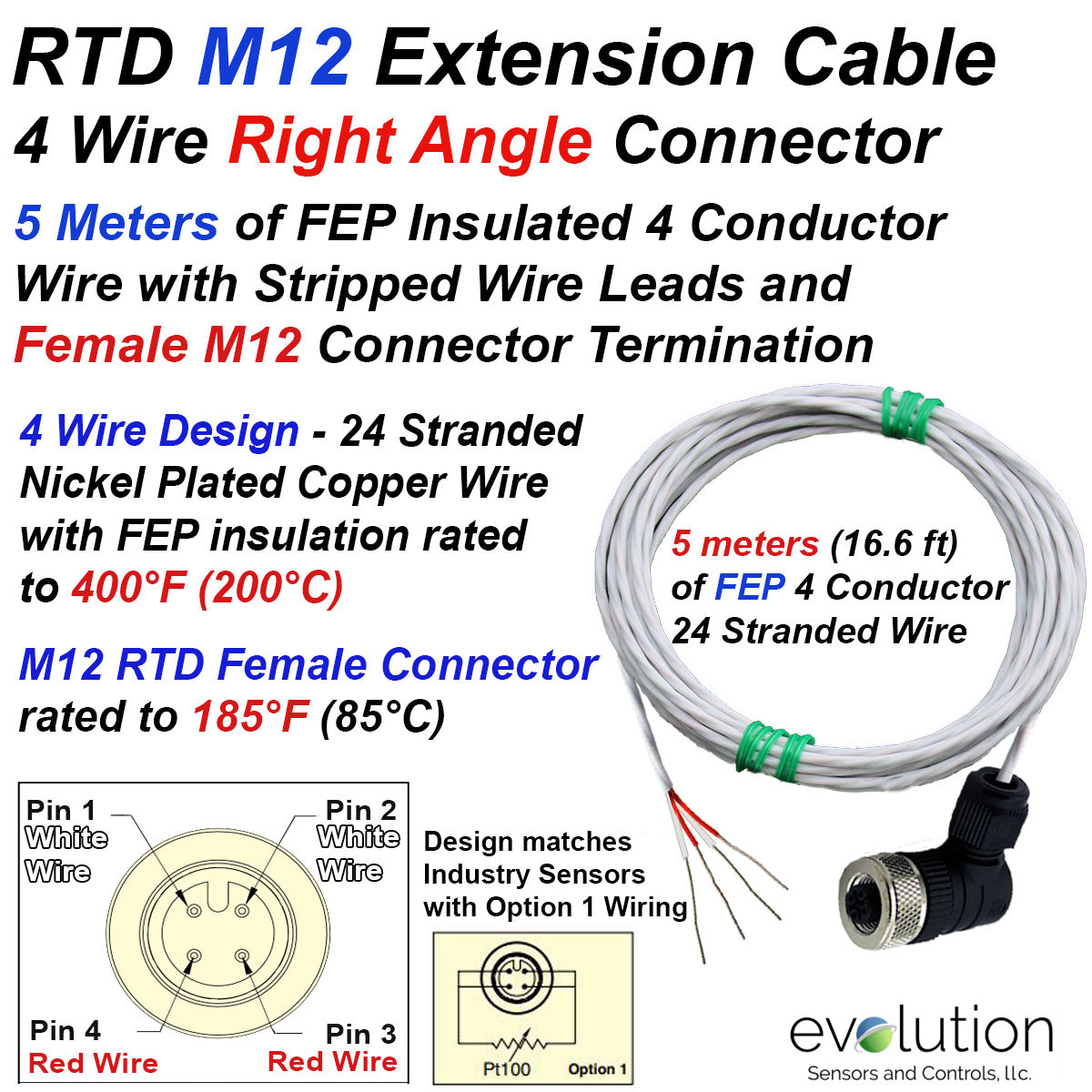

RTD M12 Extension Cable 4 Wire Right Angle Female Connector - 5 Meters (16.5ft) Long Cable

  • Special Wiring for RTD M12 probes utilizing Option 1 wiring
    • 2 Red and 2 White Color Code
      Special Wiring for RTD M12 probes utilizing Option 1 wiring
  • M12 Right Angle Female connector Temperature Range of -15°F to 185°F (-25°C to 85°C)
  • Lead Wire is 5 meters (16.5ft) of lead wire is 24 AWG stranded (7/32) nickel plated copper with 2 White - 2 Red color code with a white overall jacket.
    • FEP insulated and a maximum rating of 400°F (200°C)
  • M12 Connector design provides a secure connection.
  • Capable of accommodating 2, 3 and 4 Wire Connections.
  • EvoSensors part number: UW4-FPXX-24S-STWL-5.0M-M2FR
