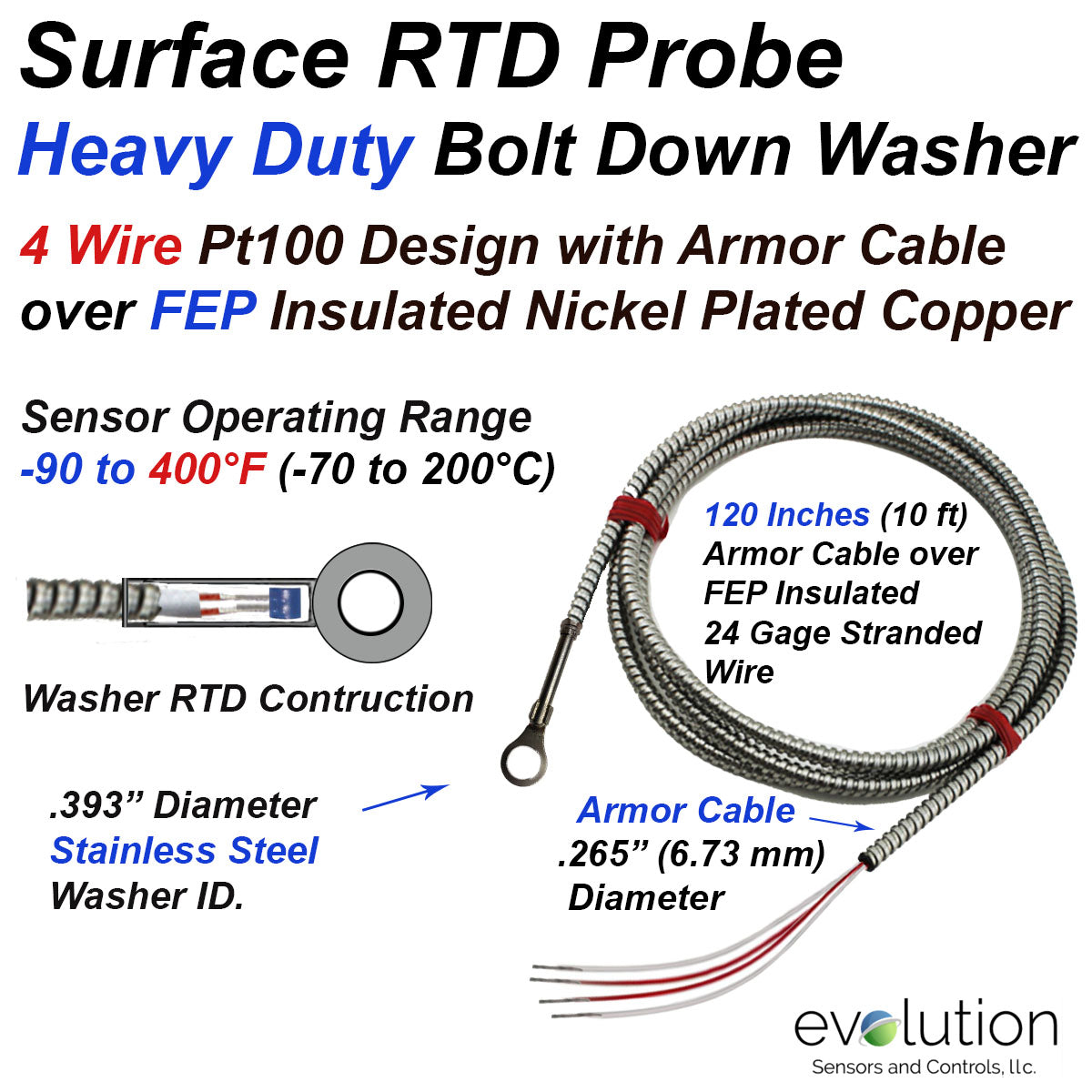

Washer Bolt Down Surface RTD - 4 Wire Pt100 RTD with Class A Accuracy Element with 3/8” Washer (.393” Hole Size) and 10 ft (120”) of FEP Insulated Wire with Armor Cable with Stripped End Termination

Bolt On Washer Spacer RTD Probe - 4 Wire Pt100 with 120 inches of FEP Insulated Lead Wire Protected with Armor Cable - Stripped End Termination

• RTD Surface Temperature Sensor has Stainless Steel Bolt On Washer fitting with  FEP Insulation protected by a flexible armor cable
• Temperature Operating range is -90 to 400°F (-70 to 200°C)
• 4-wire Pt100 (Platinum 100 Ohm) with a Class A accuracy element
• Washer Surface Fitting a ID of 0.393" (9.98 mm)

• Lead Wire is 120" Inches (10ft) long FEP (Plastic Fluoropolymer) rated to
  400°F (200°C)
• Wire Construction is 4 Conductor 24 stranded ( 7/32) nickel plated copper with 2 Red and 2 White insulation on the single wires.
• EvoSensors Part Number: P4A-BDWX-393-PX-FPAC-120-STWL
• Location: I-5-9
