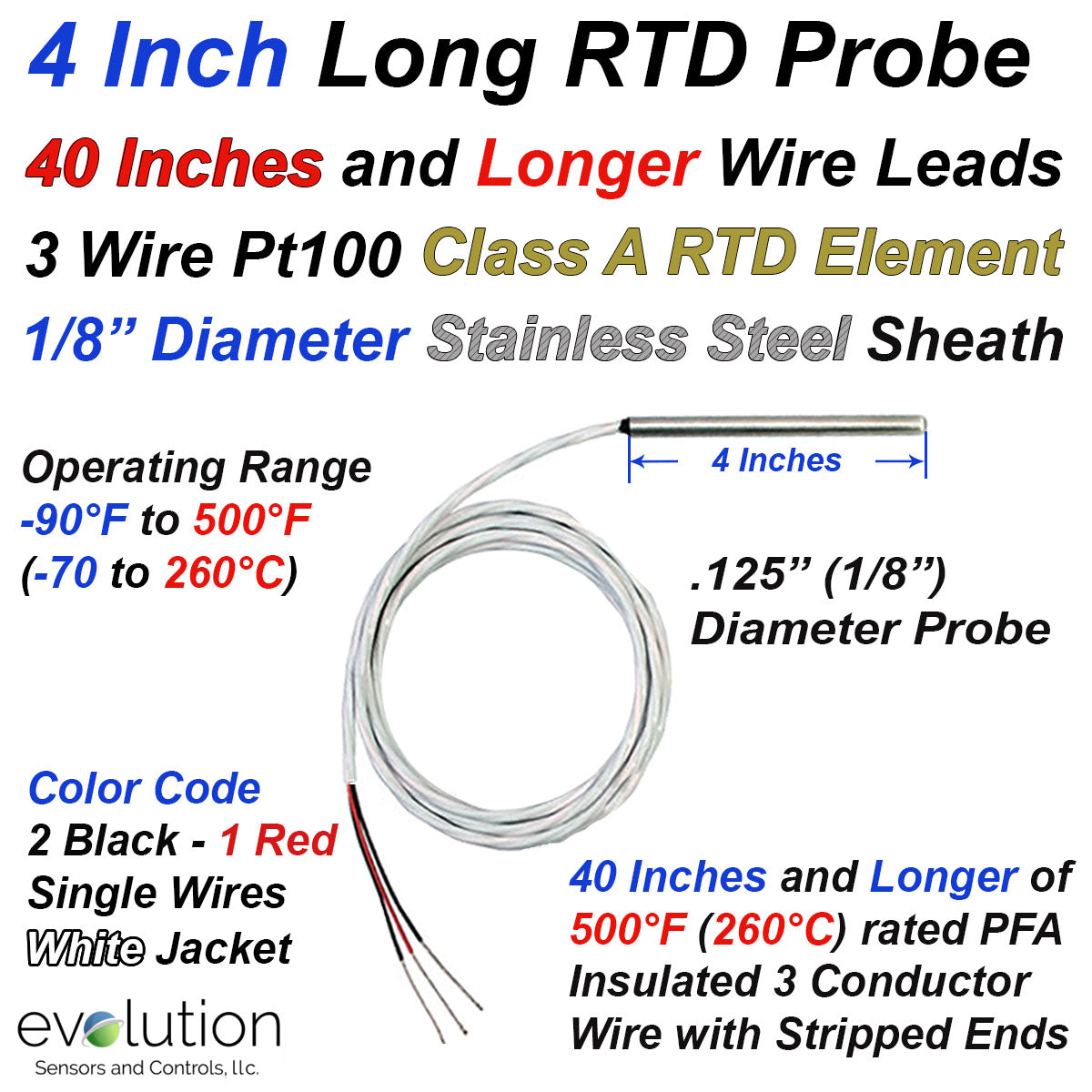

4 Inch Long RTD Probe 3 Wire Pt100 Design with 1/8" Diameter Stainless Steel sheath and PFA Insulated Lead Wire
Evosensors
$50.00
SKU: P3A-TBSX-125-PX-4-PFXX-40-STWL
Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support
4 Inch Long RTD Probe 3 Wire Pt100 Design with 1/8" Diameter Stainless Steel sheath and PFA Insulated Lead Wire
- RTD Probe has a 4 inch Long 1/8" diameter stainless steel sheath with lead wire and stripped ends.
- Temperature Operating range is -90 to 500°F (-70 to 260°C)
- Pt100 (Platinum 100 ohm) - 3 wire Class A accuracy RTD temperature sensing element with high purity mineral insulation to provide temperature stability.
- Wire Length and Transition: 500°F rated epoxy seal provides the transition of the metal probe to 40 inches (3.3 ft or 1 meter) of PFA (Plastic Fluoropolymer) insulated lead wire with a temperature range - 450 to 500 F (-268 to 260 C)
- Wire Construction: 3-conductor 26 Gage Stranded (7/34) nickel plated copper with PFA insulated inner single wires twisted and PFA outside jacket with a diameter .072".
- Wire Color code is 2 Black and 1 Red inner wires with white overall jacket.
- Instrument Connection is stripped wire leads
- EvoSensors Part Number: P3A-TBSX-125-PX-4-PFXX-40-STWL
