USB Interface Cable for Single Channel Thermocouple Data Logger

Evolution Sensors and Controls

$119.00
SKU: DL1-TC-UNIV-CABLE-USB

← Previous Product
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

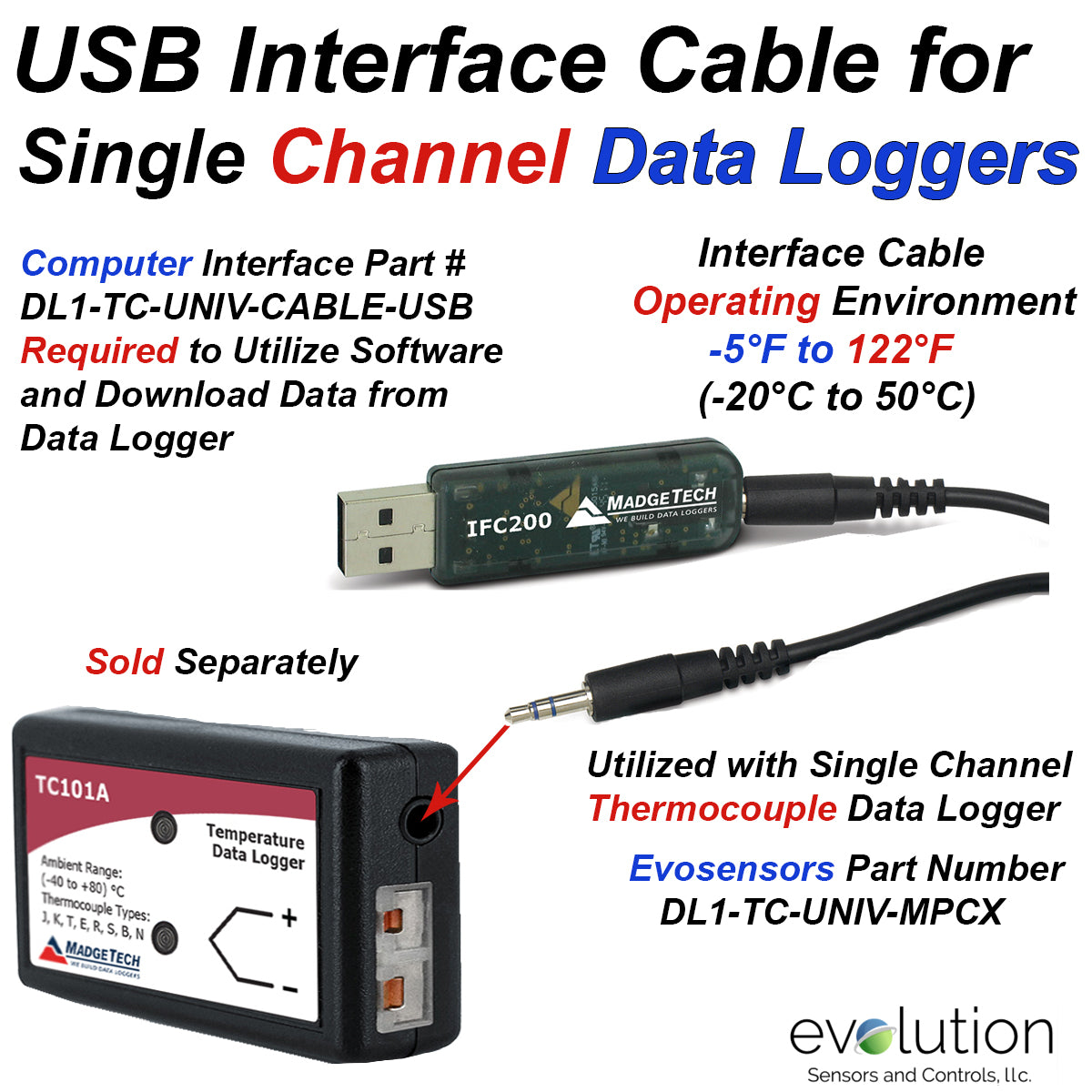

USB Interface Cable for Single Channel Thermocouple Data Logger

  • Communicates between stand alone Thermocouple data loggers part number DL1-TC-UNIV-MPCX and the MadgeTech software.
    • Through this interface, loggers can be started, stopped or downloaded.
  • The Interface Cable: DL1-TC-UNIV-CABLE-USB can be directly connected to a computer without installing any drivers.
    • The improved design can now operate at up to 500 Volts RMS relative to the computer’s earth ground when attached.
  • Equipped with communication LEDs, that provide a quick indication of the device’s status.
    • Blue light illuminates when the device is plugged in and successfully recognized by Windows.
    • The red light flashes when data is sent, and the green light flashes when data is received.
  • Click for Quick Installation Guide
  • Evosensors Part Number: DL1-TC-UNIV-CABLE-USB
  • Location: J-4-10

Consider the Following products to Complete your Temperature Measurement System

Single Channel Thermocouple Data Logger
