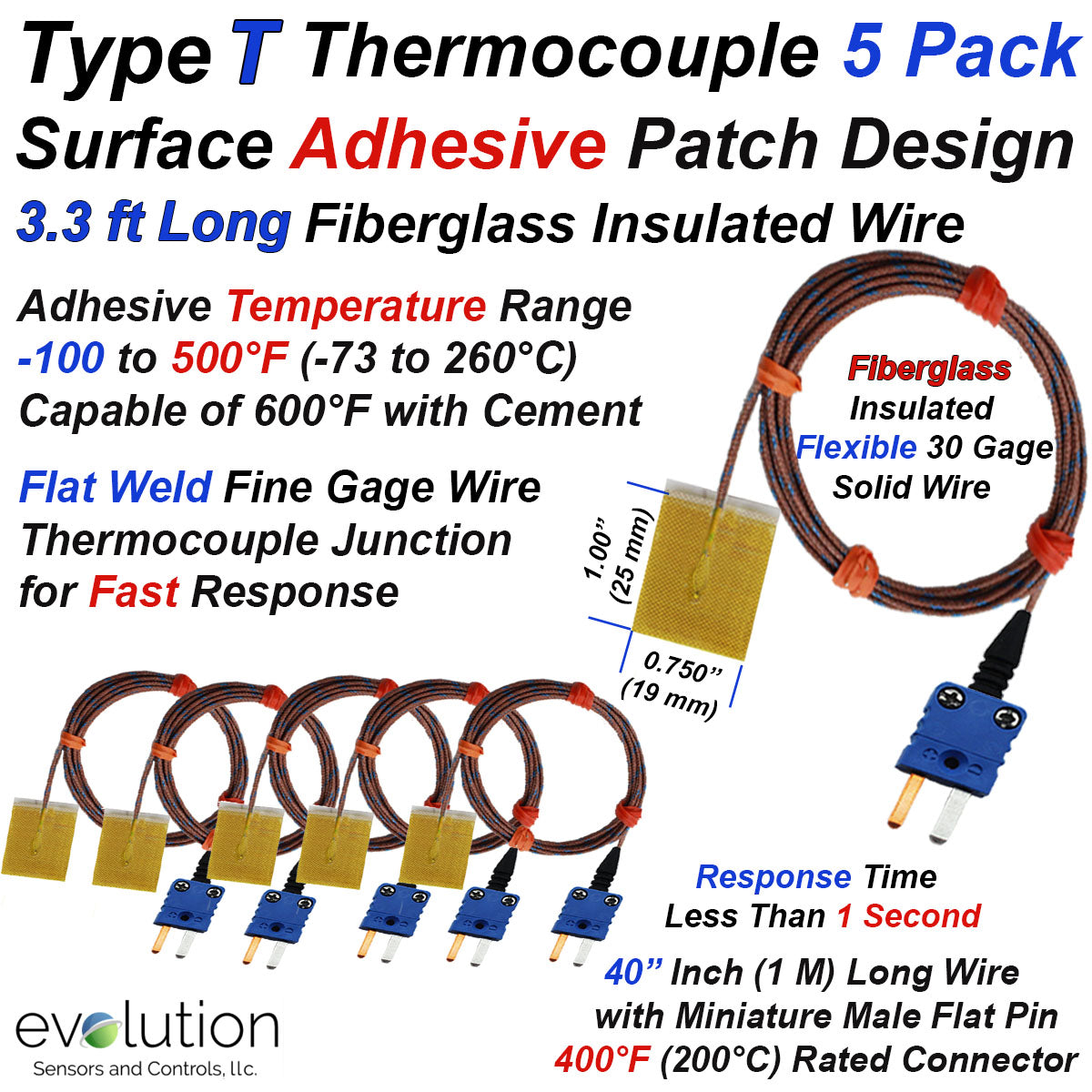

5 Pack of Type T Surface Thermocouples with 40 Inch Long Fiberglass Wire Leads and Miniature Male Connector

5 Pack of Type T Surface Thermocouples with 40 Inch Long Fiberglass Wire Leads and Miniature Male Connector

• Temperature Range is -90 to 500°F (-70 to 260°C) with capabilities to 600 F (315C) with thermal epoxy cement.
• Surface Patch is 1" long x .750" Wide x .012" Thick Polyimide Tape Fiberglass Reinforced Patch with Silicone Adhesive.
  • The surface patch width and a limited amount of lenght can be cut/reduced in the field to accommodate smaller surface areas
• Flat Weld Bead design with response time less than 1 second.
• Wire Leads are 40 inches (3.3 ft or 1 meter) of Fiberglass insulated wire rated to 900°F (482°C)
  • Note: Type T thermocouples are rated to 700°F (370°C) and this sensor design due the Polyimide Tape is rated to 600°F (315°C)
• Wire Construction 30 Gage Solid construction with Fiberglass insulated wires and outside jacket. The overall outside diameter is a nominal .037" x .050".
• Instrument Connection: Miniature Male Flat Pin Connector with a thermoplastic connector body rated to 400°F (200°C).
  • The connector can accurately transfer the full temperature range of Type T thermocouples
• EvoSensors Part Number: T5X-TAPE-REC-FW-1-FGXX-40-MPCX
• Location: C-1-9 for individual sensors
