Handheld Thermocouple Probe


SKU: K1X-S304-250-UX-32-PHRC-60-MPCX

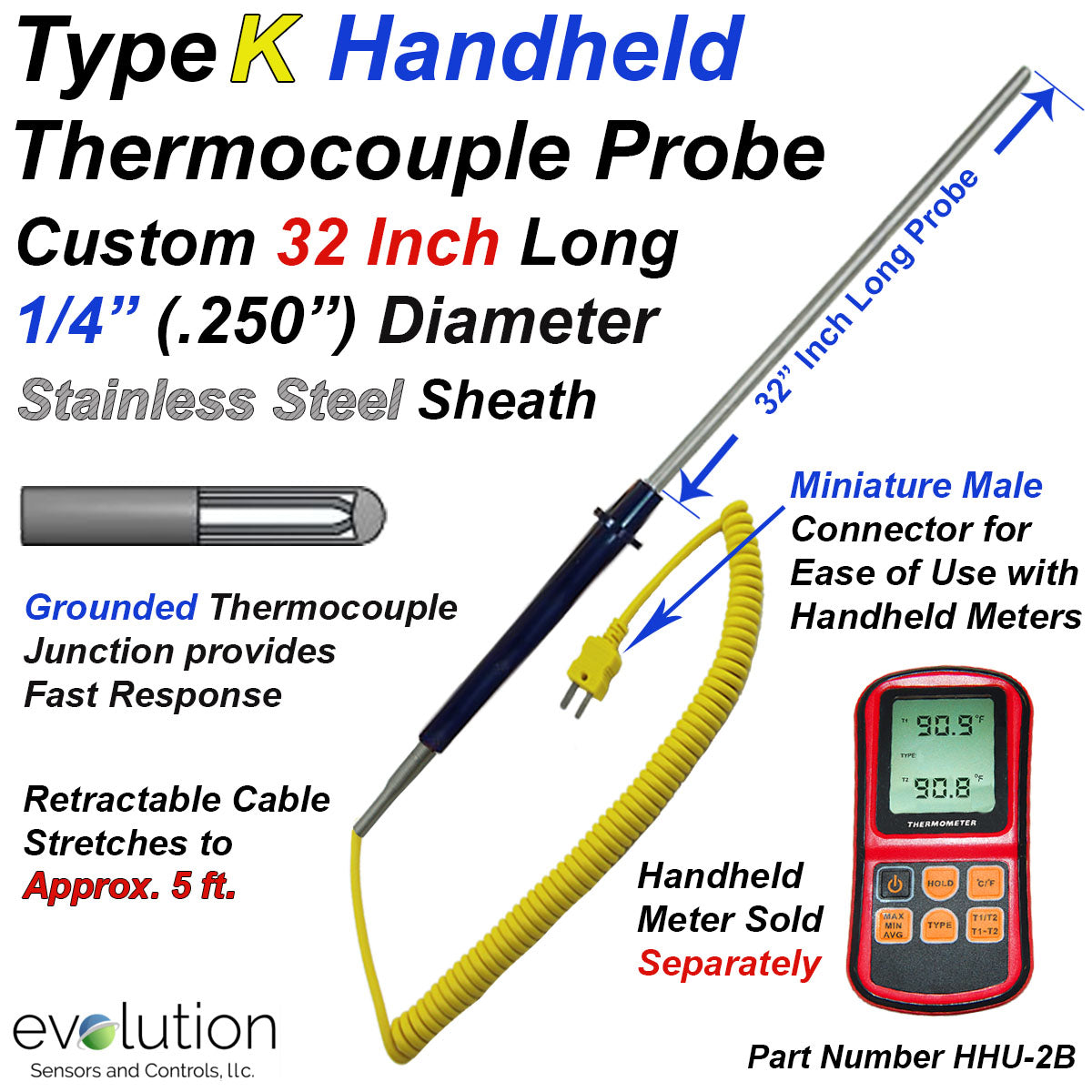

Type K Handheld Thermocouple Probe with Retractable Cable Lead Wire and Miniature Male Connector

  • The Handle Probe is a Custom Length 32" Inch Long 1/4" Diameter Stainless Steel Type K Thermocouple Probe with a Grounded Junction and Retractable Cable with a Miniature Male Connector for Ease of Use with Handheld Thermometers.
  • The thermocouple junction is Grounded to the sheath to provide Fast Response and protect the internal thermocouple wires.
  • The MI Cable design provides the ability to Form or Bend the probe to a Radius Equal to 2.5 time the Sheath Diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • The Stainless Steel Metal Sheath has an upper temperature limit of approximately 1,650 F (900 C).
  • The retractable cable is Stretchable to approximately 5 feet with an attached miniature thermocouple connector provide Quick Connection capabilities for Handheld Meters
  • EvoSensors Part Number K1X-S304-250-UX-32-PHRC-60-MPCX

Consider the following Products to Complete your Temperature Measurement System

Handheld Thermometer with Dual Thermocouple Inputs
