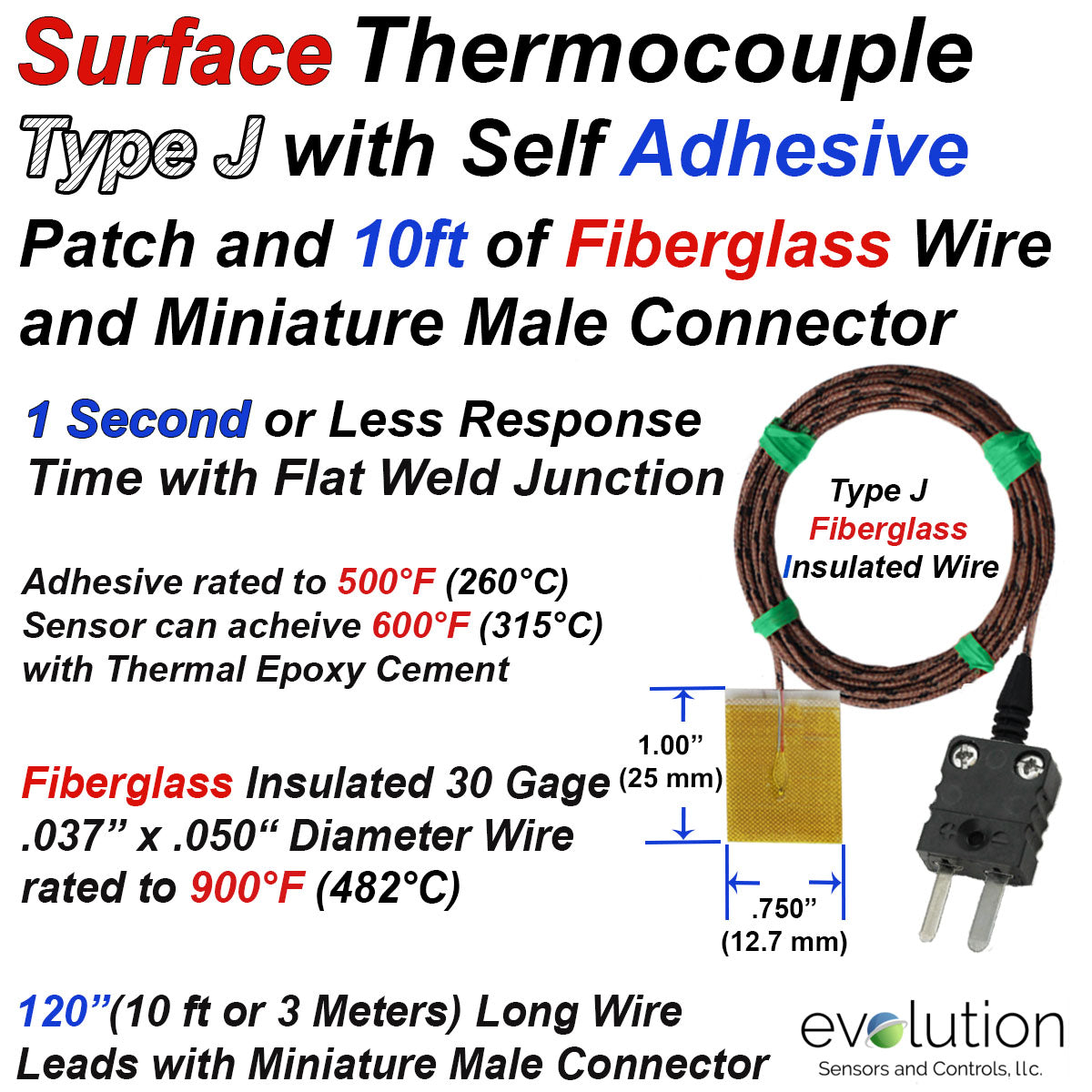

Type J Fast Response Surface Thermocouple with Adhesive Patch and 10ft of Fiberglass Insulated Wire Leads with Miniature Connector

Type J Fast Response Surface Thermocouple with Adhesive Patch and 10ft of Fiberglass Insulated Wire Leads with Miniature Connector

• Type J surface thermocouple has a 1" long x .750" Wide x .012 Thick Polyimide Tape Fiberglass Reinforced Patch with Silicone Adhesive and Lead Wires.
• Response Time can be less than 1 second
• Temperature Operating range is -90 to 500°F (-70 to 260°C) with capabilities to 600°F (315C) when a thermal cement is applied by the end user to secure the sensor to the surface.
• SLE Accuracy thermocouple wire with a Flattened Bead design encased in Self Adhesive Polyimide Tape providing easy and fast surface mounting.
• Lead Wire is 120 inches (10ft or 3 meters) of Fiberglass Insulated wire.
  • Custom length wire leads are available email us at info@evosensors.com or call us at 407-420-8080 for details.
• Wire Construction is flexible 30 Gage Solid construction with Fiberglass insulated wires and outside jacket. The overall outside diameter is a nominal .037" x .050".
• Instrument Connection: Miniature Male Flat Pin Connector. The thermoplastic body has a temperature range of -40 to 400°F (-40 to 200°C).
  • Connector can accurately transfer the full range of Type J Thermocouples
  • Higher temperature connectors are available, email us at info@evosensors.com or call us at 407-420-8080 for details.
• EvoSensors Part Number: J2S-TAPE-REC-FW-1-FGXX-120-MPCX
