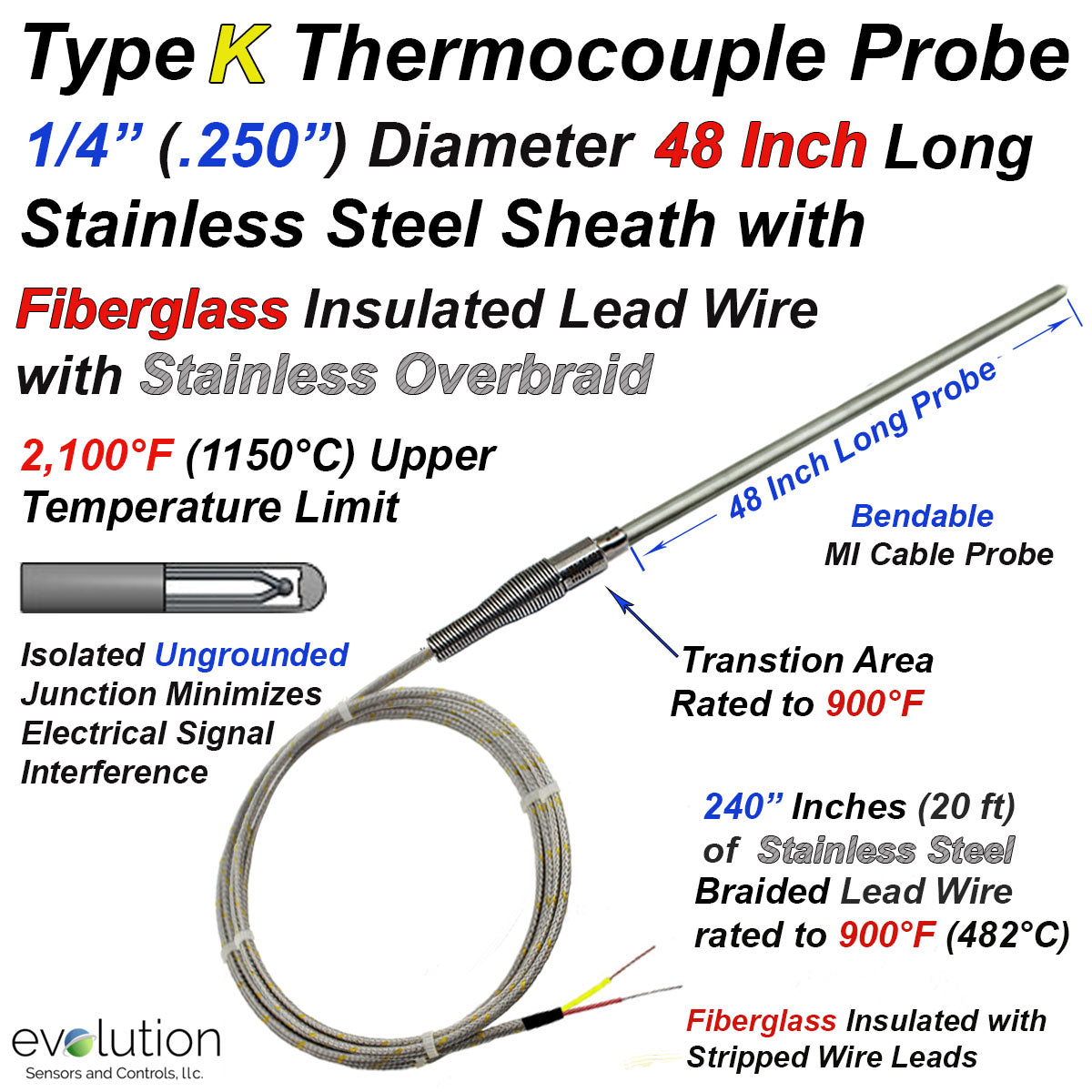

Type K Thermocouple Probe - 48 Inch Long 1/4" Diameter Stainless Steel Sheath Ungrounded with a Transition to 240 Inches of Stainless-Steel Over Braided Fiberglass Insulated Lead Wire with Stripped Ends

Evosensors

$150.00
SKU: K1X-S304-250-UX-48-FGSB-240-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type K Thermocouple Probe - 48 Inch Long 1/4" Diameter Stainless Steel Sheath Ungrounded with a Transition to 240 Inches (20 ft.) of Stainless-Steel Over Braided Fiberglass Insulated Lead Wire

  • Temperature Operating range of the sheath is -32 to 2100°F (0 to 1150°C)
  • Ungrounded Thermocouple design minimizes electrical interference and provides protection to the thermocouple junction.
  • Bendable Probe - 48 inch long 1/4" diameter stainless steel MI Cable sheath design provide the ability to bend the probe to a radius of 2.5 times the diameter without damaging the sensor
  • Transition to Lead Wire is stainless steel fitting backfilled with high temperature ceramic cement to 900°F (482°C) and a stainless steel spring providing strain relief for the lead wire.
  • Wire Leads - 240 inches (6.09 meters or 20ft) long of 20 gage stranded (7/28 - 7 strands of 28 gage (.012") diameter thermocouple wire individually insulated with Fiberlgass braid in a 2 wire parallel construction and Fiberglass outer jacket.
    • Stainless steel braid over the Fiberglass insulated provides additional mechanical protection.
    • Wire is rated up to 900°F (482°C)
  • Color Code is ANSI with a yellow insulated nickel chrome positive wire, red insulated nickel aluminum negative wire and brown overall jacket with silver stainless steel overbraid
  • Instrument Connection - stripped wire leads
  • Evosensors Part Number: K1X-S304-250-UX-48-FGSB-240-STWL - design with stripped leads.
    • Location: G-2-12
