Type R Exposed Thermocouple 6 Inch and LONGER 1/8" Diameter Ceramic Sheath with 30 Gage (.010") Internal Wire and Miniature Male Ceramic Connector

Evolution Sensors and Controls

$280.00
SKU: R1X-CINS-125-30G-EX-6-MCCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

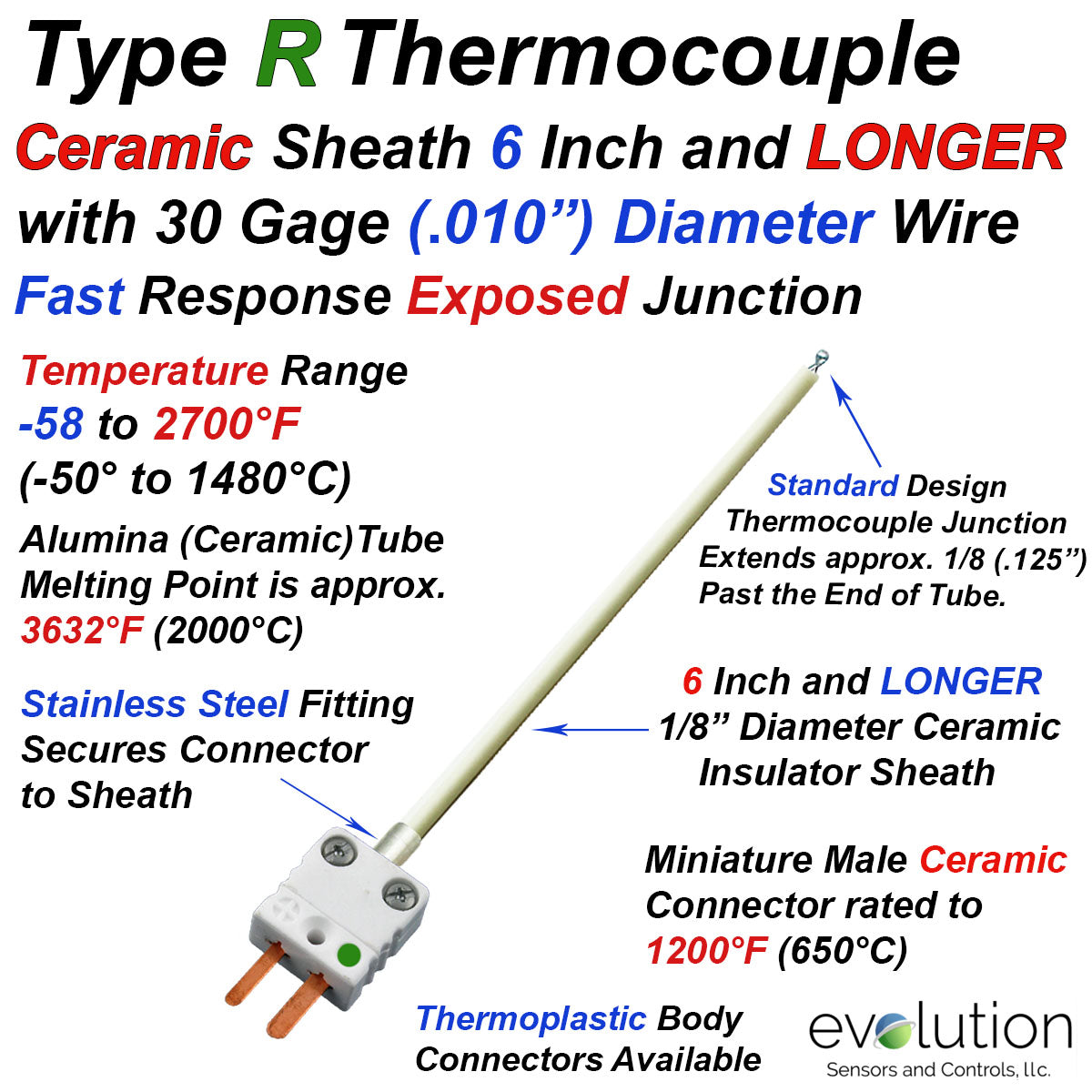

Type R Exposed Platinum Rhodium Thermocouple - Ceramic Sheath 6 Inch and LONGER 1/8" Diameter with 30 Gage (.010") Internal Wire and Miniature Male Ceramic Flat Pin  Connector

  • Type R Thermocouple made with small diameter 30 Gage (.010" inch .025 mm) for Fast response
  • Temperature Range -58 to 2700°F (-50 to 1480°C)
  • Exposed Welded Bead bare wire thermocouple junction provides Fast temperature measurement response time.
  • Alumina (Ceramic) 6 inch and Longer 1/8" diameter rigid sheath rated to 3632°F (2000°C)
  • Internal Thermocouple Wire is 30 gage solid (.010") diameter Type R bare wire.
  • Instrument Connection: miniature male ceramic flat pin plastic thermocouple connector.
    • Cermain connector body has temperature range of below zero to 1200°F (650°C) and can accurately transfer the full range of Type R thermocouples.
  • EvoSensors part number: R1X-CINS-125-30G-EX-6-MCCX - 6 Inch Long Probe
    • R1X-CINS-125-30G-EX-8-MCCX - 8 Inch Long Probe
    • R1X-CINS-125-30G-EX-12-MCCX - 12 Inch Long Probe
    • R1X-CINS-125-30G-EX-18-MCCX - 18 Inch Long Probe
    • R1X-CINS-125-30G-EX-24-MCCX - 24 Inch Long Probe

Consider the following products to complete your temperature measurement system

    Type R and S Thermocouple Programmable Panel Meter Type R and S Thermocouple Extension Cable with Miniature Ceramic Female Connector and Stripped Ends Termination 8 Channel Data Logger for Thermocouples, RTD's, and Thermistors - with Graphic Screen Interface
