Type T Thermocouple Probe Tube and Wire Design 1" Long Probe with 40 Inches and LONGER PFA Insulated Lead Wire with Miniature Connector or Stripped End Termination

Type T Thermocouple Probe Tube and Wire Design 1" Long Probe with 40 Inches and LONGER PFA Insulated Lead Wire with Miniature Connector or Stripped End Termination

• Type T Thermocouples are very stable and have excellent repeatability between –380 to 392 F (–200 C to 200 C).

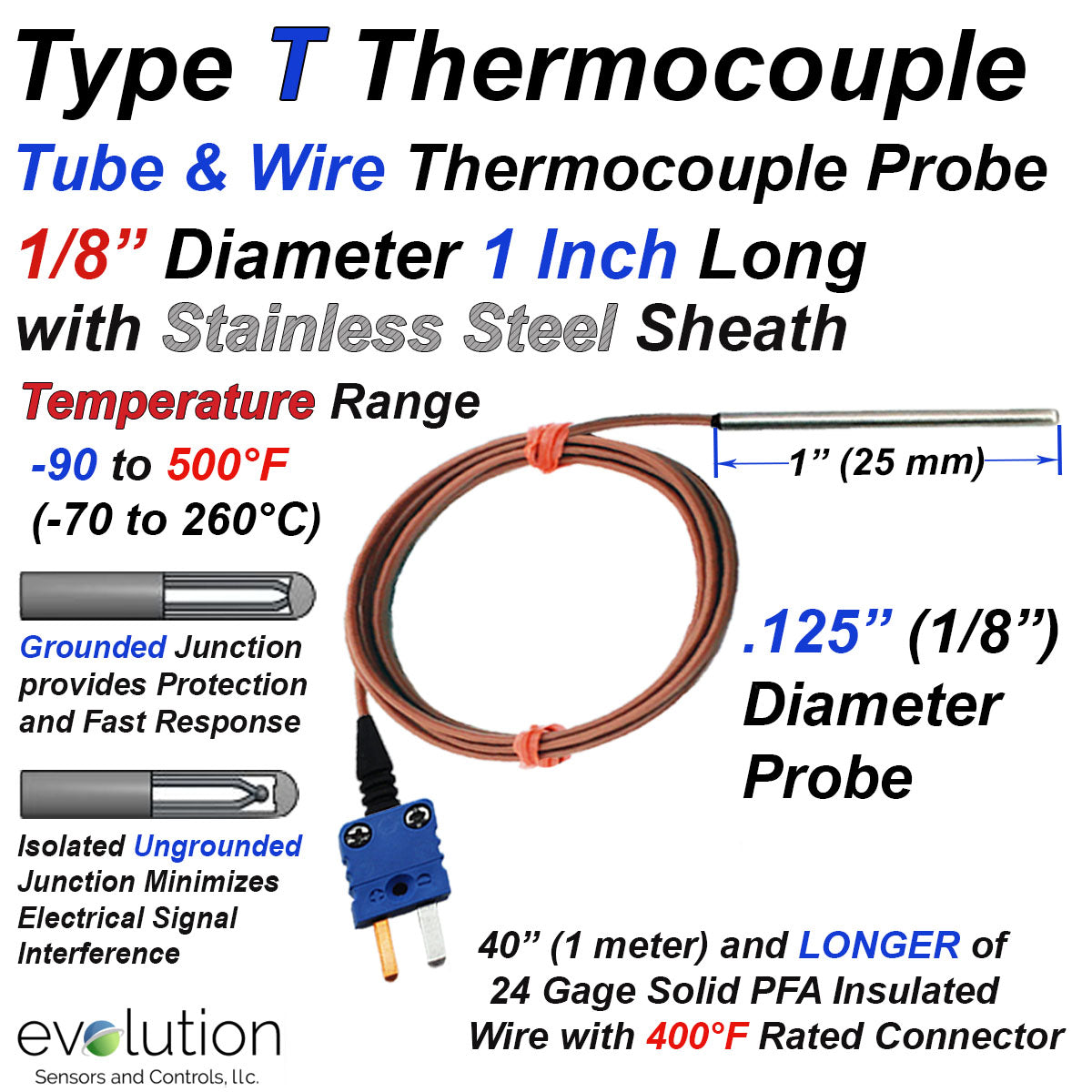

• The Probe is 1 inch Long with a 1/8" (3.2 mm) Diameter Stainless Steel Sheath. The thermocouple junction grounded to the sheath for temperature response.
• The probe transitions to 40 Inches (1 meter) or LONGER of 24 Gage 500 F (260 C) PFA insulated solid wire with a Miniature Male 400 F rated Connector attached  for easy instrumentation connection.
• The transition from the tube to the lead wire is achieved with a 500 F (260 C) rated epoxy.
• EvoSensors Part Number: T1X-TBSX-125-GX-1-PFXX-80-MPCX - Miniature Connector Location: C-5-17
  • T1X-TBSX-125-GX-1-PFXX-80-STWL: Grounded Thermocouple Junction with Stripped Leads Termination
  • T1X-TBSX-125-UX-1-PFXX-80-STWL:  Ungrounded Thermocouple Junction with Stripped Leads Termination
  • T1X-TBSX-125-UX-1-PFXX-900-MPCX - Ungrounded Thermocouple Junction with 75 ft (900 Inches) of Lead Wire and Miniature Male Connector Termination

Consider the Following Accessories to Complete your Temperature Measurement System.
