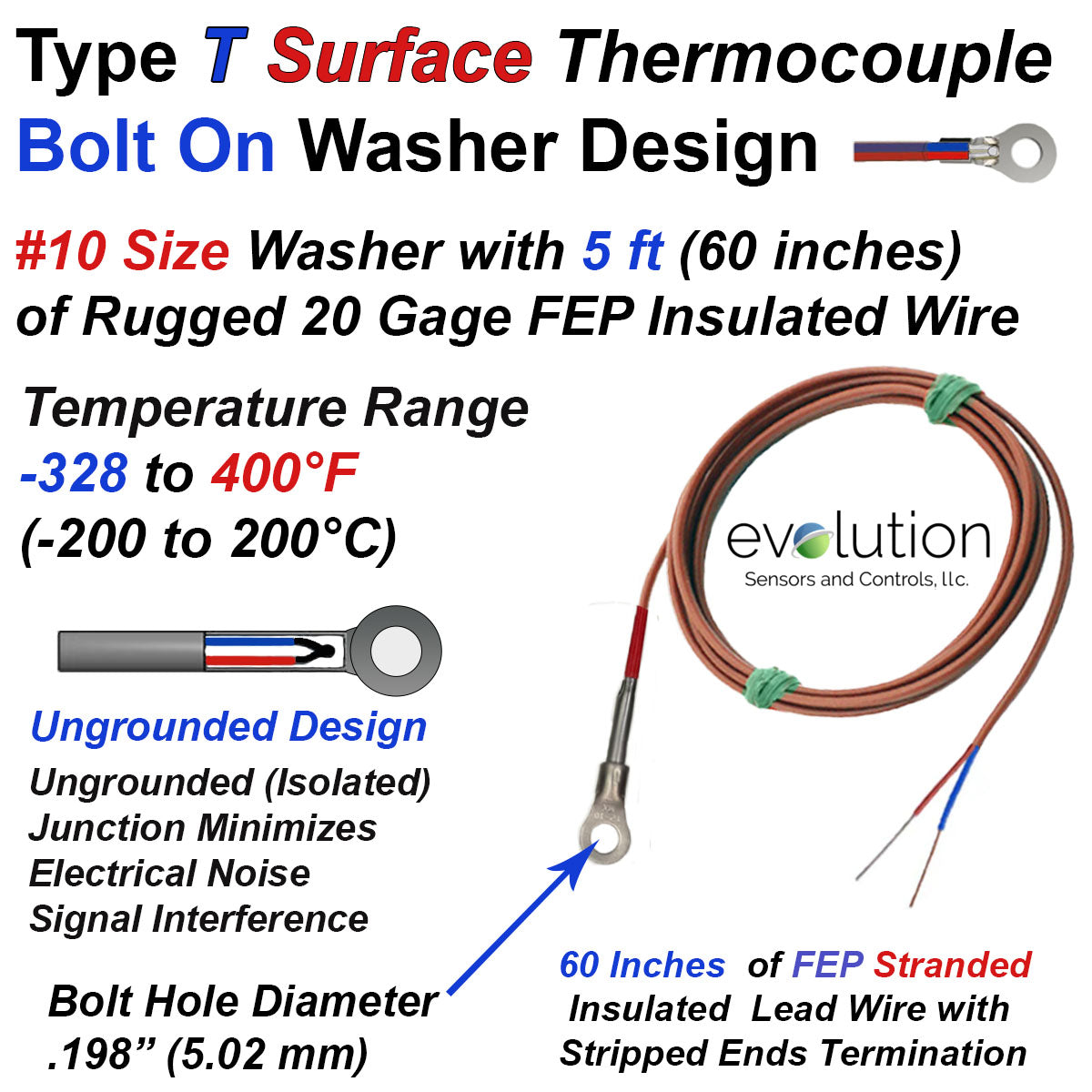

Type T Washer Thermocouple #10 Sized Bolt On Design with 5 ft of FEP Lead Wire with Stripped Ends

Washer Thermocouple #10 Sized Bolt On Design - Type T - 5 ft of FEP Insulated Rugged 20 Gage Stranded Lead Wire with Stripped Ends

• Thermocouple Surface Probe has a welded Type T thermocouple junction is encased in a rugged Stainless Steel Washer to provide a secure Bolt On design for Surface Temperature Measurement.
• Temperature Range -328 to 400°F (-200 to 200°C)
• Washer Surface Fitting a ID of 0.198" (5.02 mm) and OD of 0.376" (9.55 mm) with a .042" (1.06 mm) thickness
• Washer Mounting hole is 0.198" to accept a #10 Bolt or Screw
• Wire Leads - 5 ft (60 inches) of thermocouple grade 20 gage stranded (7/28 - 7 strands of 28 gage (.012") diameter coated with FEP teflon insulation and Stripped Ends for instrumentation connection.
• Wire Construction -2 wire parallel (side by side) design with each wire individually insulated with a .008 wall of 400°F (200°C) rated FEP.  Overall wire diameter of .073" x .120"
• Color Code - is ANSI (American National Standards Institute) a Blue positive (Copper) and Red negative (Constantan) with a Brown overall jacket
• EvoSensors Part Number T1X-BDWH-198-20U-FPXX-60-STWL
  • Location: G-3-12
