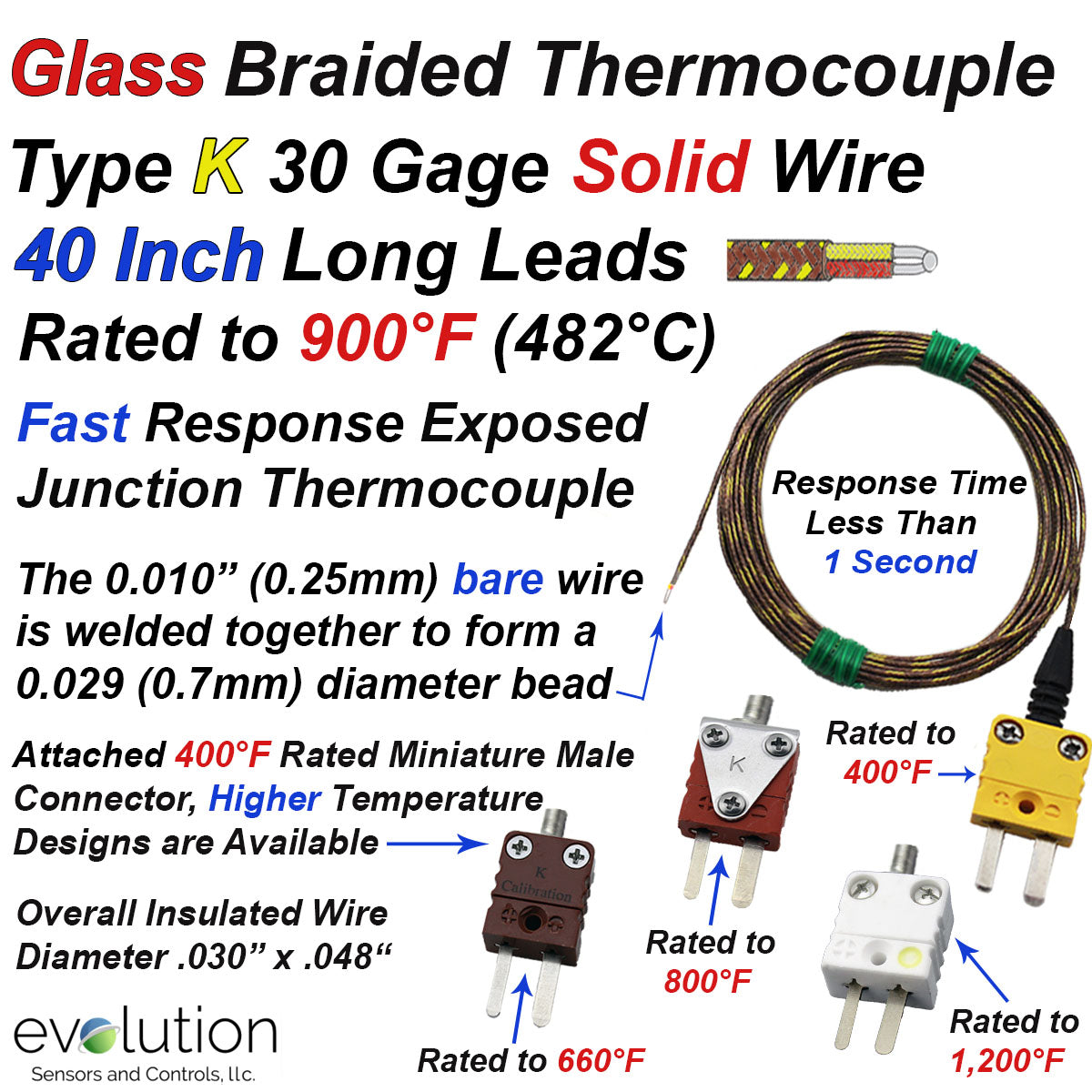

Glass Braided Thermocouple - Type K with 40 inches of 30 Gage Fiberglass Insulated Wire and Miniature Connector

Evosensors

$10.00
SKU: K1X-WBWX-30G-EX-0.25-FGXX-40-MPCX



Glass Braided Thermocouple - Type K with 40 inches of 30 Gage Fiberglass Insulated Wire and Miniature Connector

  • The Type K thermocouple sensor is an exposed welded bead design made with 40 inches (1 meter) High Accuracy SLE thermocouple grade 30 Gage wire with Fiberglass braided insulation and a miniature male thermocouple connector.
  • Exposed Thermocouple junction is 0.029" (0.7 mm) diameter (approx. thickness of credit card) and provides the opportunity for precise placement along with a Fast temperature response of less than 1 second.
  • Temperature Operating range up to 900°F (482°C).
  • Wire Construction is 30 gage solid 0.010" (0.25 mm) diameter bare wire in a 2 wire parallel construction. The wires individually insulated with Fiberglass along with a Fiberglass outside jacket. The overall outside diameter is  .030" x .048".
  • Industries and applications include Heat Treating, Metal Processing, Aerospace, Optics, and overall Research and Testing along with many other industries.
  • EvoSensors Part Number K1X-WBWX-30G-EX-0.25-FGXX-40-MPCX
  • Location: D-4-5

Consider the following Accessories to complete your Sensor System

Miniature Thermocouple Connector Accessories Thermocouple Connectors Miniature Female Type K  Handheld Thermometer with Dual Thermocouple Inputs
