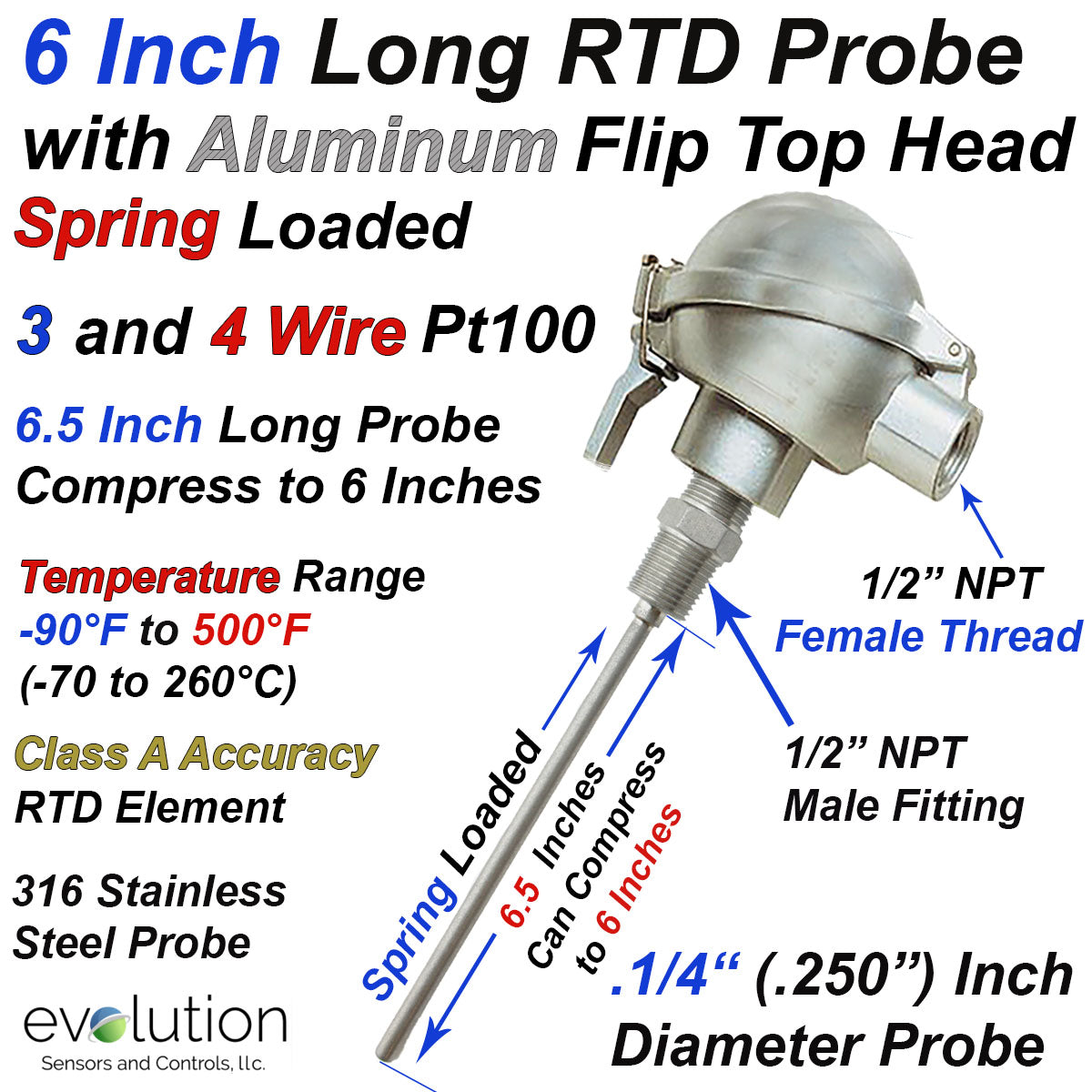

Industrial RTD - Spring Loaded with Aluminum Flip Top Connection Head - 6 Inch Long 1/4" Diameter Probe

Industrial RTD Temperature Sensor - Spring Loaded with Aluminum Flip Top Connection Head - 1/4" Diameter 6.5 Inch to 6 Inch Long Stainless Steel Probe

• Temperature Operating range is -90 to 500°F (-70 to 260°C)
• Pt100 (Platinum 100 Ohm) 3 wire and 4 wire designs.
  • Class A high accuracy temperature sensing element.
  • 316 Stainless Steel sheath backed filled with compacted high purity mineral insulation.

• Probe Transitions to a 1/2" NPT Fitting and a Aluminum Flip Top Head with an IP68 rating, providing a very quick although secure access to connect the instrumentation lead wire to the internal sensor ceramic terminal block or to the in-head transmitter.
• Spring Loaded design provides the ability to Compress the 6.5 Inch Long Probe to 6 Inches.
  • Design ensures the probe is in contact with bottom of the protection thermowell or other process measurement surface.
• Versatile Industrial design is ideal for process applications in many industries, including chemical, petrochemical, power generation, food & beverage, dairy, metal processing, heat-treating, oil & gas, mining, biomass, water & wastewater, aerospace, pharmaceutical, HVAC, rubber, plastics and others.
• EvoSensors Part Number: P3A-316SS-250-PX-6-NPT2-X-IHAF-SPTW for the 3 wire Pt100 RTD Probe - Location: G-5-10
  Part Number: P4A-316SS-250-PX-6-NPT2-X-IHAF-SPTW for the 4 wire Pt100 RTD Probe
