2 Wire RTD Pt100 Temperature Sensor with Adhesive Surface Patch and 10ft of Lead Wire

Evosensors

$55.00
SKU: P2A-TAPE-REC-PX-1-PFXX-120-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

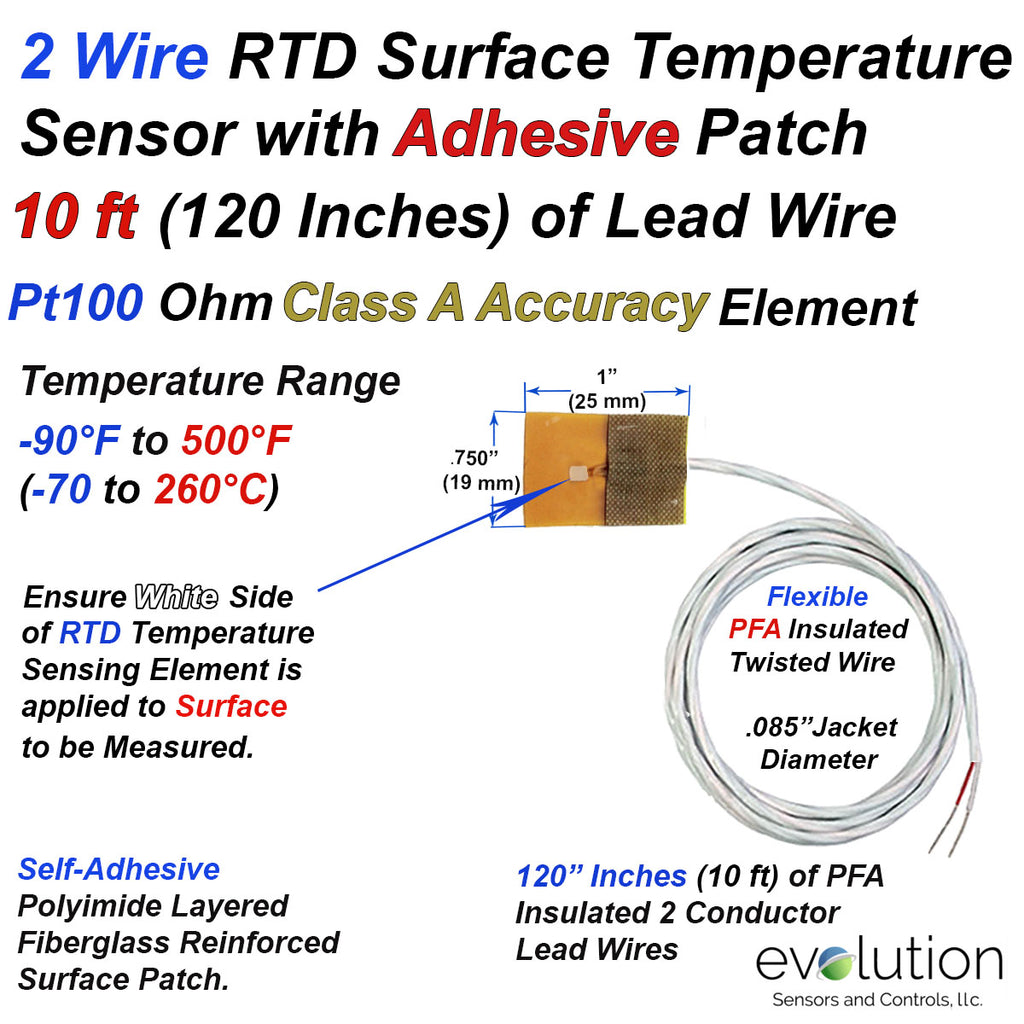

2 Wire RTD Pt100 Temperature Sensor with Adhesive Surface Patch and 10ft of Lead Wire

  • RTD Surface Temperature Sensor with a 1" long x 3/4" Wide x .010" Thick Polyimide Tape Fiberglass Reinforced Patch with Silicone Adhesive and Lead Wires.
  • Temperature Operating range is -90 to 500°F (-70 to 260°C)
  • Pt100 (Platinum 100 Ohm) 2-wire design with a highly accurate Class A RTD temperature sensing element encased in a polyimide tape.
  • Adhesive surface patch with easy peel away protection layer to expose adhesive
  • Wire Leads - 10ft (120 inches) of flexible 2 conductor wire with a 500°F (260°C) rated white PFA insulated jacket and stripped ends
  • Wire Construction -has been Updated to a 2 wire twisted design as compared to previous parallel design. The bare 26 gage stranded (7/34) nickel plated copper remains the same along with the PFA insulation
    • Color code is 1 Red and 1 Black with overall white jacket
    • Overall outside jacket changed to .085" from the original .042"x .070" inch diameter.
  • Design provides simple and fast surface mount with fast response and accurate temperature measurement.
    • EvoSensors Part Number: P2A-TAPE-REC-PX-1-PFXX-120-STWL
    • Location G-4-3
