Stick on RTD Surface Temperature Sensor with 10 to 100ft of Lead Wire - 3 Wire Pt100

Evosensors

$65.00
SKU: P3A-TAPE-REC-PX-1-PFXX-120-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

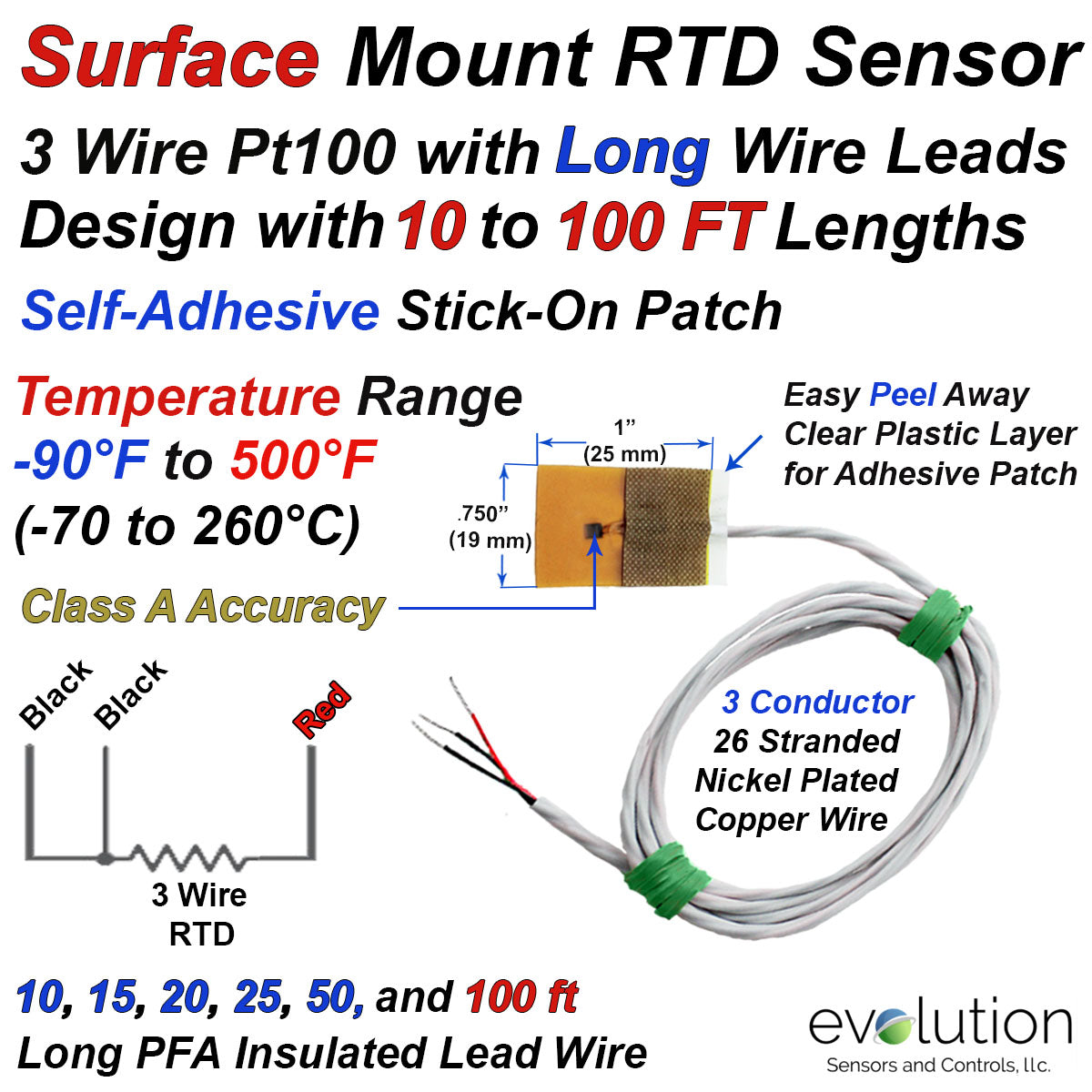

Surface Mount Stick-On RTD Temperature Sensor - 3 Wire Pt100 Class Design with 10 to 100ft of PFA insulated lead wire.

  • The Stick On RTD Surface Temperature Sensor has a nominal 1" long (25 mm) x .750" (19 mm) Wide x .008 Thick Polyimide Tape Fiberglass Reinforced Patch with Silicone Adhesive and Lead Wires.
  • Temperature Operating Range is -90 to 500°F (-70 to 260°C).
  • The sensor is a Pt100 (Platinum 100 Ohm) 3-wire design with a Class A Element encased in Self Adhesive Polyimide Tape providing easy and fast surface mounting.
  • The tape section of the sensor transitions to 10ft (120 inches) or up to 100ft (1200 inches) of PFA (Plastic Fluoropolymer) insulated wire. The wire is rated to 500°F (260°C) and it is a 3-conductor 26 Gage Stranded (7/34) construction with an overall outside nominal diameter of .085".
  • The design and overall performance capabilities of this product provides accurate and fast surface temperature along with electrical interference immunity for applications in Bio-Pharma, Food and Beverage, Power Generation, Aerospace, Industrial Automation, Power Electronics, Refrigeration - HVAC and other industries.
  • EvoSensors Part Number: P3A-TAPE-REC-PX-1-PFXX-120-STWL for 10ft Length. Location: C-5-8
    • P3A-TAPE-REC-PX-1-PFXX-180-STWL for 15ft length
    • P3A-TAPE-REC-PX-1-PFXX-240-STWL for 20ft length
    • P3A-TAPE-REC-PX-1-PFXX-300-STWL for 25ft length (G-2-11)
    • P3A-TAPE-REC-PX-1-PFXX-600-STWL for 50ft length
    • P3A-TAPE-REC-PX-1-PFXX-1200-STWL for 100ft length

Consider the following Accessories to complete your Sensor System

8 Channel Data Logger for Thermocouples, RTD's, and Thermistors - Handheld Design with Graphic InterfaceMiniature RTD Transmitter with 4-20 mA Output accepts 2, 3 and 4 Wire Pt100 and Pt1000 RTD SensorsRTD Data Logger 4 to 16 Channels for 2, 3 or 4 Wire RTD Designs
