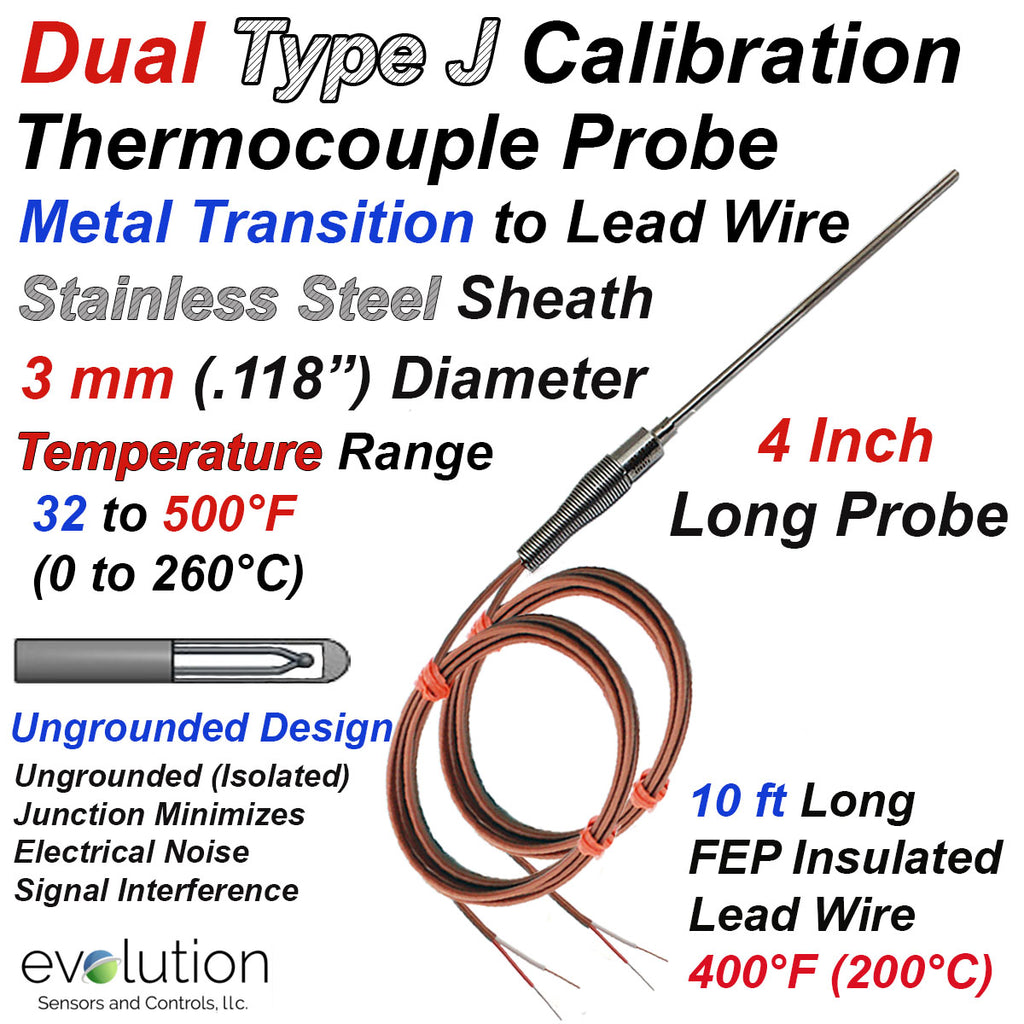

Dual Type J Thermocouple Probe with Transition to Lead Wire - 4 Inch Long x 3 mm Diameter Stainless Steel Sheath Ungrounded with10ft of Lead Wire

Evosensors

$75.00
SKU: J2X-S304-3MM-UX-4-PFXX-120-STWL

   Call 856 579-7490 or Email info@evosensors.com for Technical and Sales Support

Dual Type J Thermocouple Probe with Transition to Lead Wire - 4 Inch Long x 3 mm Diameter Stainless Steel Sheath Ungrounded with 10ft of PFA Lead Wire

  • Design provides 2 Individual Thermocouple measuring circuits in 1 stainless steel sheath,
  • Ungrounded Junctions minimizing potential electronic interference and protected the thermocouple junction
  • Temperature Range of 32 to 500°F (0 to 260°C)
  • Transition Fitting is a stainless steel housing and spring backfilled with 500°F (260°C) rated epoxy.
  • Lead Wire is 10ft (120 inches) of PFA insulated solid thermocouple wire rated to 500F°(260°C)
  • Wire Construction - 24 Gage Solid Type J thermocouple wire with a PFA coating on the single wires and overall jacket.
    • ANSI Color Code - White on the positive wire, Red on the negative wire and Brown overall jacket
  • Instrument Connection - stripped wire leads
  • EvoSensors part number: J2X-S304-3MM-UX-4-PFXX-120-STWL
