Dual Type K Thermocouple Extension Cable with Dual Miniature Female Connector and 3ft or LONGER FEP Insulated Leads Wire with Stripped Ends Termination

Evosensors

$40.00
SKU: K2X-CAPF-24G-SLXX-3FT-MDCF

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

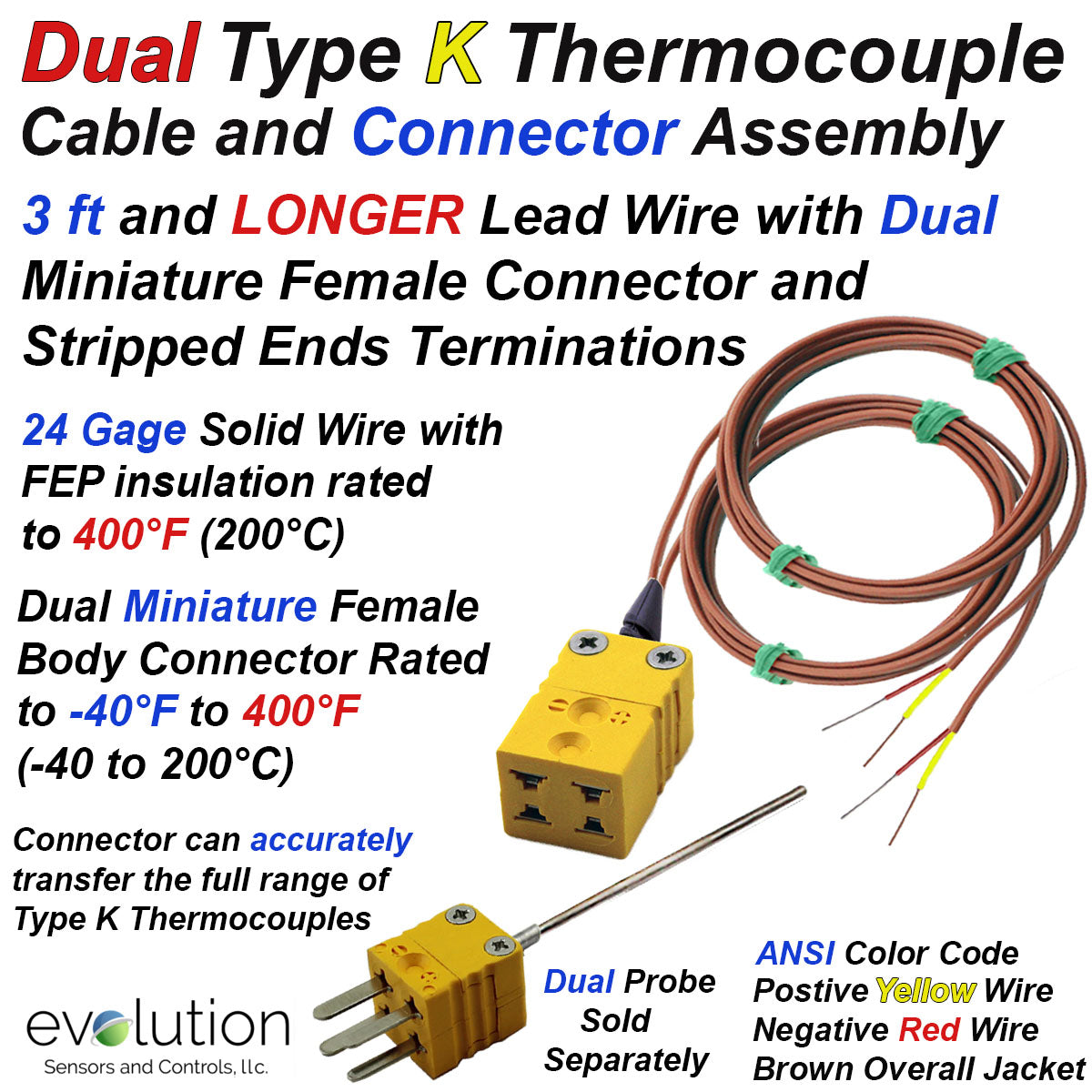

Dual Type K Thermocouple Extension Cable with Dual Miniature Female Connector and 3ft or LONGER FEP Insulated Leads Wire with Stripped Ends Termination

  • Extend the Thermocouple Signal from the probe or sensor to your instrumentation without impacting the accuracy of your temperature measurement
  • Sensor Connection - a -40 to 400°F (-40 to 200°C) rated Dual Type K Miniature Female connector on the extension cable provides the connection of the Type K Probe with the Dual Miniature Male
    • Connector can accurately transfer the full range of Type K Thermocouples
  • Instrument Connection - stripped wire leads
  • Wire Temperature Operating range -328 to 400°F (-200 to 200°C)
  • Wire Leads - 24 Gage Solid high accuracy SLE grade Type K thermocouple wire with 2 bare wires measuring .020" each (24 gage) in a side by side (parallel) design individually insulated with FEP or PFA outer jacket.
    • Outside jacket dimension .056" x .092" providing a excellent combination of strength and flexibility
    • Color Code is ANSI with a yellow positive wire, red negative wire and brown overall jacket. Connector is yellow
  • EvoSensors Part Number:  K2X-CAPF-24G-SLXX-3FT-MDCF with 3 ft of lead wires
