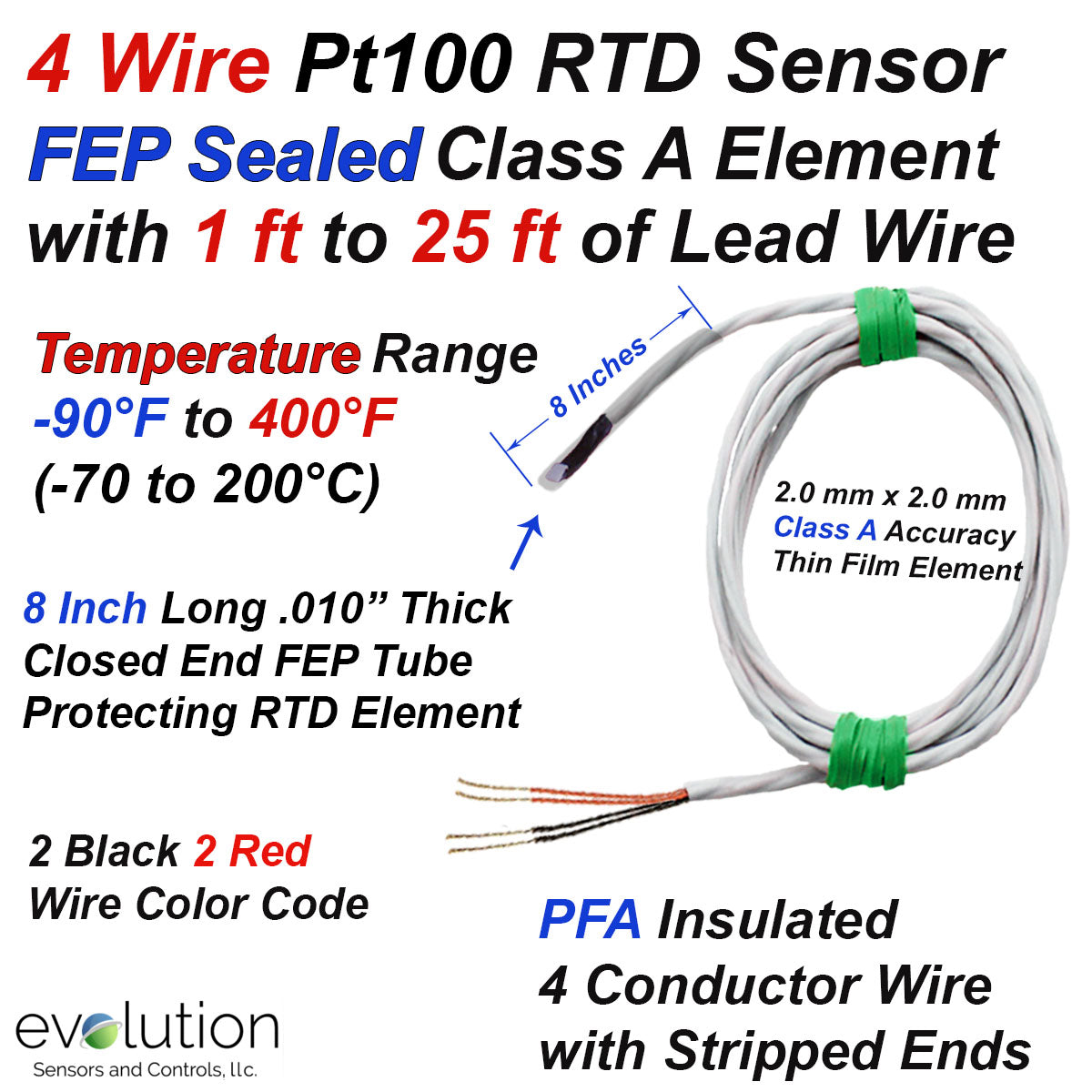

FEP Sealed 4 Wire Pt100 RTD Sensor with Class A Accuracy Element and 2 to 25ft of Lead Wire

Evosensors

$55.00
SKU: P4A-TF22-26S-PX-PTC8-PFXX-36-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

FEP Sealed 4 Wire Pt100 RTD Sensor with Class A Accuracy Element and 2 to 25ft of Lead Wire

  • Sensor Design - is a 4-wire RTD with a Pt100 (Platinum 100 Ohm) Class A accuracy element for both Fast Response and Excellent Accuracy.
  • Temperature Operating range is - 90 to 400°F (-70 to 200°C
  • FEP Thin Wall Closed End tube provides protection of exposed temperature sensing element and allows immersion up to 8 inches into fluids.
  • Wire Leads - 2 (24 inches) to 9 ft (108 inches) of PFA insulated 26 Gage Stranded nickel plated 4 conductor twisted wire with 2 Red and 2 Black color code on the inner wire and white overall jacket and an overall nominal diameter of .098"
  • Instrument Connection - Stripped Wire Leads
  • Applications - The 4-wire design provides a higher level of temperature measurement accuracy as compared to a 2 or 3-wire design. The sensors immunity from electrical interference and FEP encapsulated exposed element is perfect for HVAC, Semi-Conductor and other wet, corrosive or immersion application.
  • EvoSensors Part Number: P4A-TF22-26S-PX-PTC8-PFXX-( )-STWL
  • Location for 108 inches:  H-4-2
