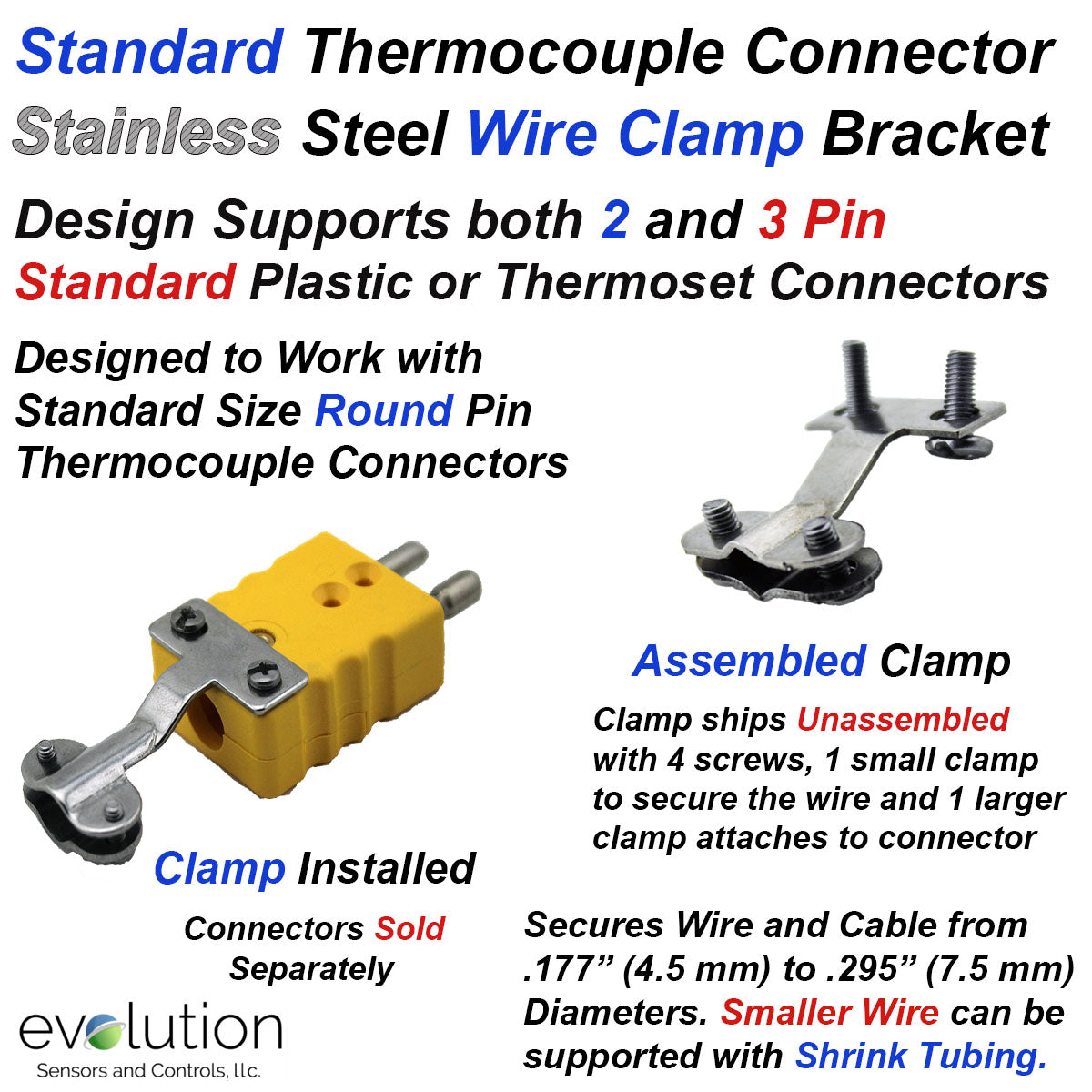

Wire Clamp for Standard Size Thermocouple Connectors

  • Wire Clamp is designed to work with the Evosensors Standard Size Thermoplastic and Thermoset thermocouple connectors.
    • Ultra-High Temperature Thermoset and Ceramic connectors require a Different wire clamp
  • Standard Wire Clamp works with 2 and 3 Pin male and female connectors
  • Wire Diameters from .177" inch (4.5 mm) to .295" Inch (7.5 mm) diameter. Smaller wire diameter can be utilized with the clamp with addition of our silicone wire grommets and or applying heat shrink tubing.
  • Time Saving and Easy to Use design does not require the replacement of the screws in the connector cap
  • Rugged and Secure Metal design
  • EvoSensors part number: FIT-CLMP-CON-RP-X-SPCX
  • Location: A-1-20
