Type K Thermocouple MI Cable Probe Stainless Steel Sheath Ungrounded .032" Diameter 6 Inches Long with Miniature Connector


SKU: K1X-S304-032-UX-6-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

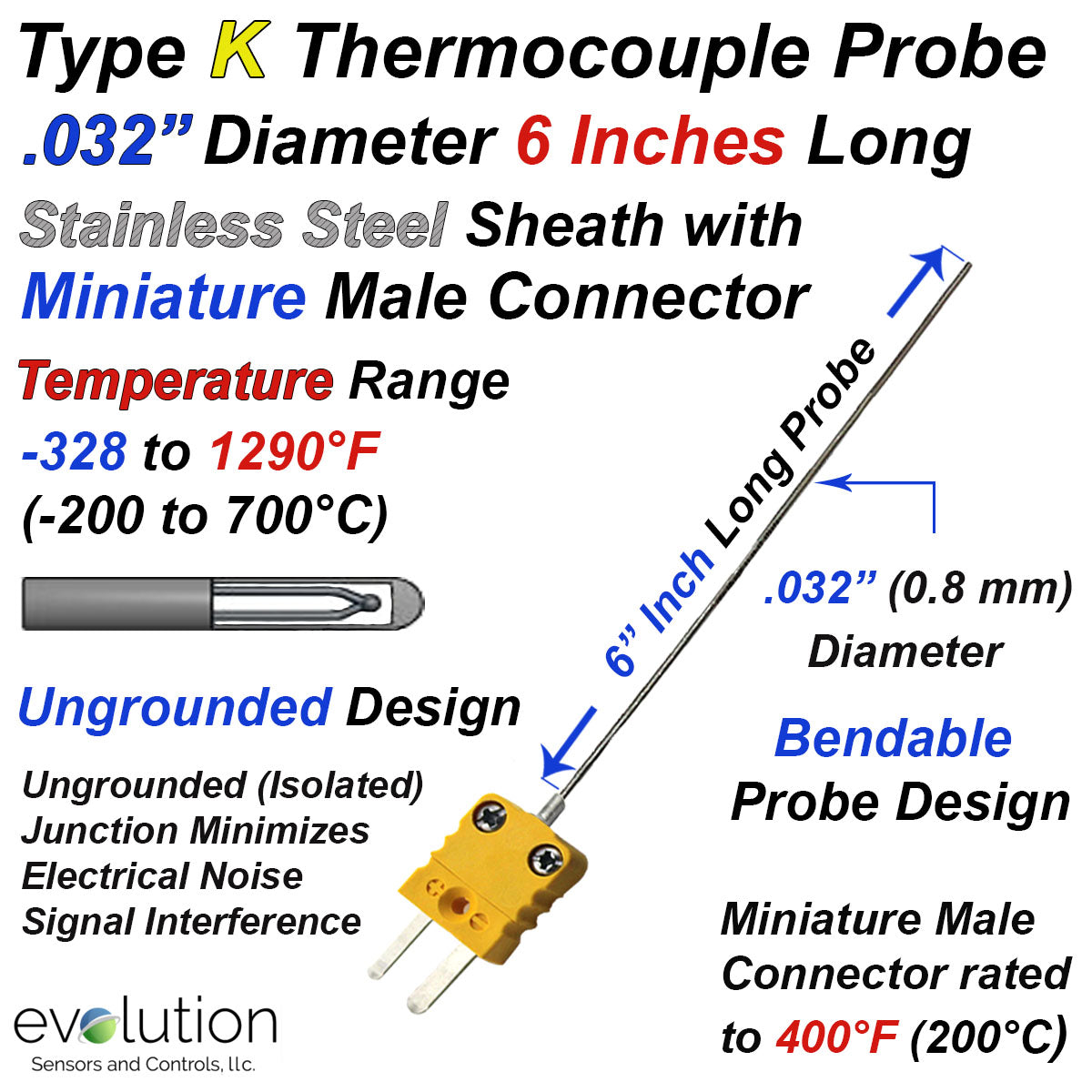

Type K Thermocouple Probe with Small .032" Diameter 6 Inch Long Stainless Steel Sheath for Fast Response and Miniature Quick Connect/Disconnect Connector

  • Upper Temperature Limit for a .032 diameter MI Cable probe is typically in the 1290°F (700°C) range
  • Ungrounded (Isolated) thermocouple junction from the sheath to Minimize Potential Signal Interference from Electrical Noise.
  • MI Cable Design provides the ability to Form or Bend the probe to a radius equal to twice the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • Instrument Connection is a miniature flat pin male thermocouple connector with a temperature range of -40° to 400°F (-40 to 200°C).
  • Applications and Industries include - Automotive Emission and Exhaust systems, Energy, and overall  Research and Development along with many others
  • EvoSensors Part Number: K1X-S304-032-UX-6-MPCX
  • Location: B-2-16
