Surface RTD Probe - Heavy Duty Washer Design 4 Wire Pt100 with 10 ft of Armor Cable Protected Leads

Evosensors

$100.00
SKU: P4A-BDWH-265-PX-FPAC-120-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

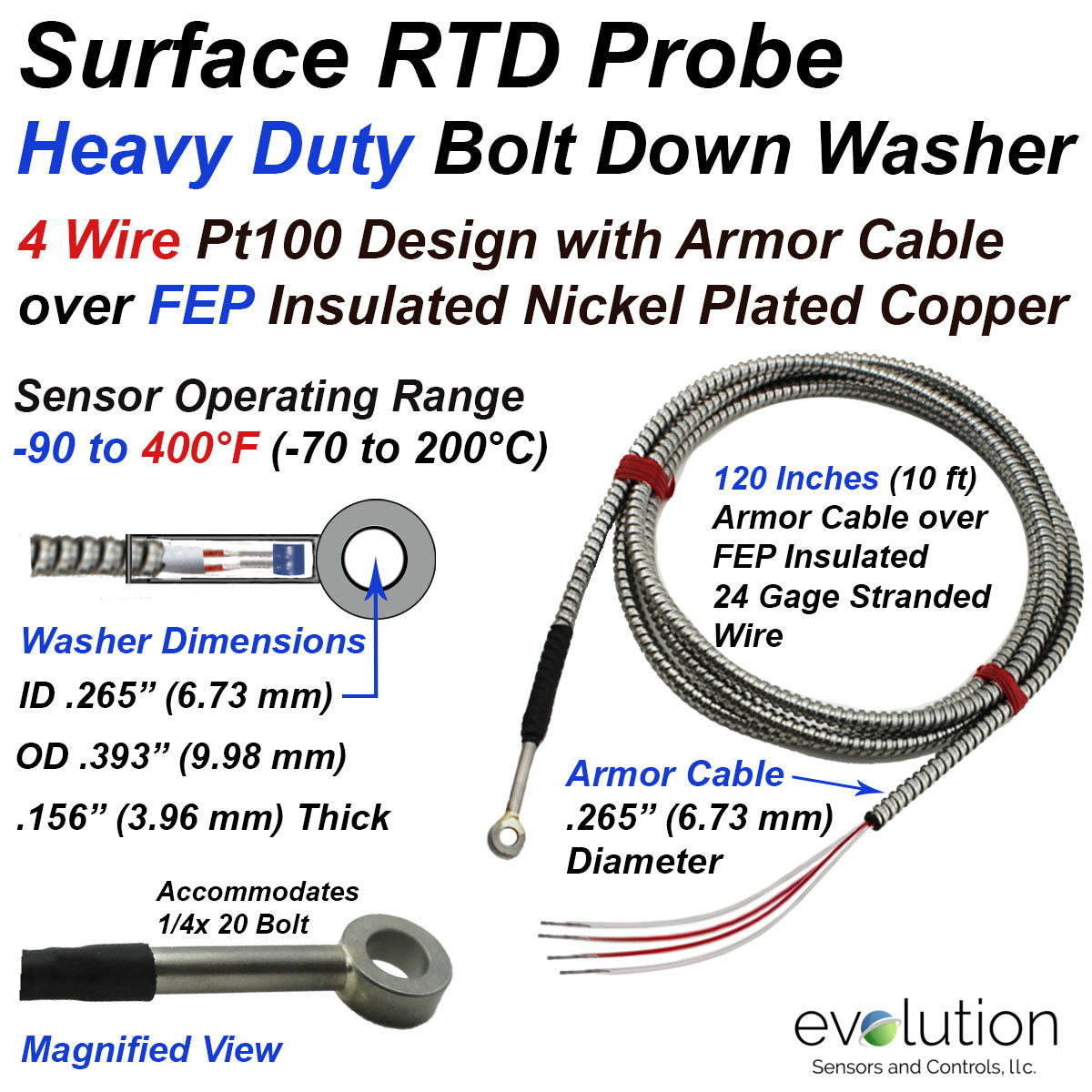

Surface RTD Probe - Heavy Duty Washer Design 4 Wire Pt100 with 10 ft of Armor Cable Protected Leads

  • RTD Surface Probe has a Thick Bolt-On Stainless Steel washer with 120" inches
    (10ft) of armor cable over FEP leads with stripped ends
  • Temperature Operating range is -90 to 400°F (-70 to 200°C)
  • 4-wire Pt100 (Platinum 100 Ohm) with a Class A accuracy element encased in the washer style fitting
  • Washer Surface Fitting a ID of 0.265" (6.73 mm) and OD of 0.393" (9.98 mm) with a .156" (3.96 mm) thickness
  • Lead Wire is 120 Inches (10ft) long 400°F (200°C) rated FEP (Plastic Fluoropolymer) insulated wire with armor cable and stripped ends
  • Wire Construction is 4 Conductor 24 stranded ( 7/32) nickel plated copper with 2 Red single wires and 2 White jacket and Armor Cable covering
  • Rugged and Accurate temperature measurement applications for Machine Builders, Plastics, Packaging and other industries
  • EvoSensors Part Number: P4A-BDWH-265-PX-FPAC-120-STWL
  • Location: I-5-8
