Surface Thermocouple Non-Adhesive Patch with 40 inches of Type K Fiberglass Wire and Miniature Connector

Evosensors

$27.00
SKU: K1X-TAPN-REC-FW-1-FGXX-40-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

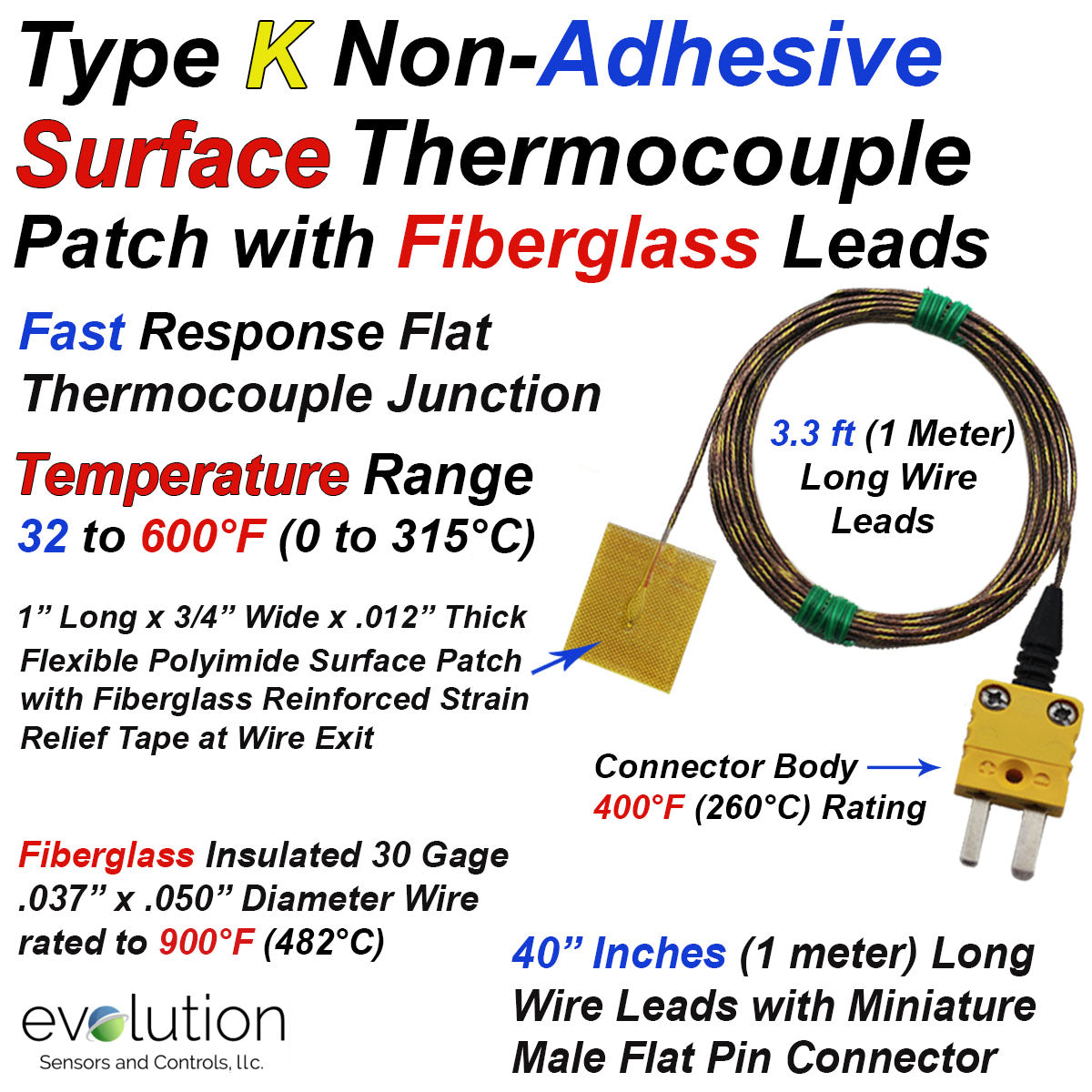

Surface Thermocouple Non-Adhesive Patch with 40 inches of Type K Fiberglass Wire and Miniature Connector

  • Type K thermocouple designed for surface temperature measurement with a nominal 1" long x .3/4" Wide x .012" Thick Polyimide Tape Fiberglass Reinforced Patch with 40 inches of lead wires and miniature male connector
  • Temperature Operating range 32 to 600°F (0 to 315°C)
  • Response Time the small flattened thermocouple juction and thin film polyimide can provide response time less than 0.5 seconds.
  • Sensor is made from Highly Accurate SLE grade 30 gage solid thermocouple wire with 900°F (482°C) rated fiberglass insulated wire.
  • Surface Patch is Polyimide and Fiberglass film layers measuring 1" long x 3/4" wide (25 mm x 19 mm)
  • Wire Leads - 40" inches (3 ft 3 inches or 1 meter)
  • Instrument Connection - miniature male flat pin thermocouple connector.
  • Applications and Industries include Semi-Conductor, Oil and Gas, Off-Road and Agriculture Equipment, Automotive, Aerospace, overall Product Development and Testing along with many other industries.
  • EvoSensors K1X-TAPN-REC-FW-1-FGXX-40-MPCX
  • Location: C-1-26

Consider the following Accessories to complete your Sensor System

  Miniature Thermocouple Connector Accessories  Thermocouple Connector Extension Cable PFA insulated wire with miniature male and female connector Handheld Thermometer with Dual Thermocouple Inputs
