Type B Thermocouple Extension Cable Assembly - 3 to 10ft Long Wire Leads with Miniature Male and Female Connector Terminations

Evosensors

$20.00
SKU: B1X-CAPF-26S-MPCF-3FT-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

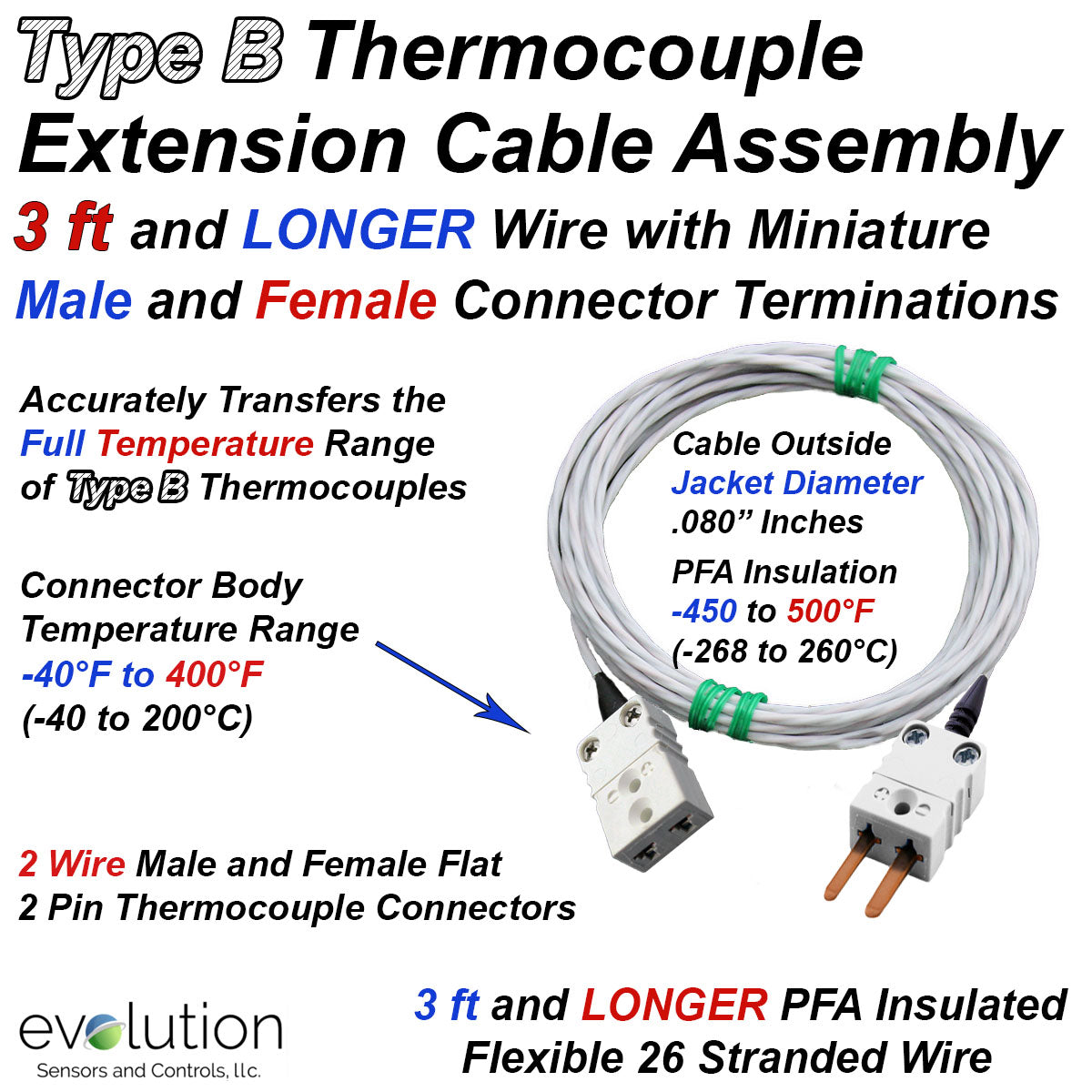

Type B Thermocouple Extension Cable Assembly - 3 to 10 ft Long Wire Leads with Miniature Male and Female Connector and Terminations

  • 3 to 10ft Long extension cable accurately transfers the full temperature range of Type B thermocouples
    • Longer cable lengths can be made in 1 business day - call the Evolution Sensors team at 856 579-7490 for details or email as info@evosensors.com
  • Miniature Male and Female flat 2 pin connector termination
    • Connector body rated to -40 to 400°F (-40 to 200°C) although the connectors and wire are full capable of accurately transferring the full range of a Type B thermocouple
  • Wire Leads are 2 conductors of Flexible 26 gage stranded (7/34) nickel plated copper with 500°F (260°C) rated PFA insualtion on the single wires and overall jacket
    • Cable outside jacket diameter is approximately .080"
  •  EvoSensors part number: B1X-CAPF-26S-MPCF-10FT-MPCX - with 10ft long wire leads.
    • Part number: B1X-CAPF-26S-MPCF-3FT-MPCX with 3ft long wire leads
