Type B Thermocouple Extension Cable Assembly - 3ft to 20ft Long Wire Leads with Miniature Ceramic Female Connector and Stripped End Terminations

Evosensors

$30.00
SKU: B1X-CAPF-26S-FPFS-3FT-MCCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

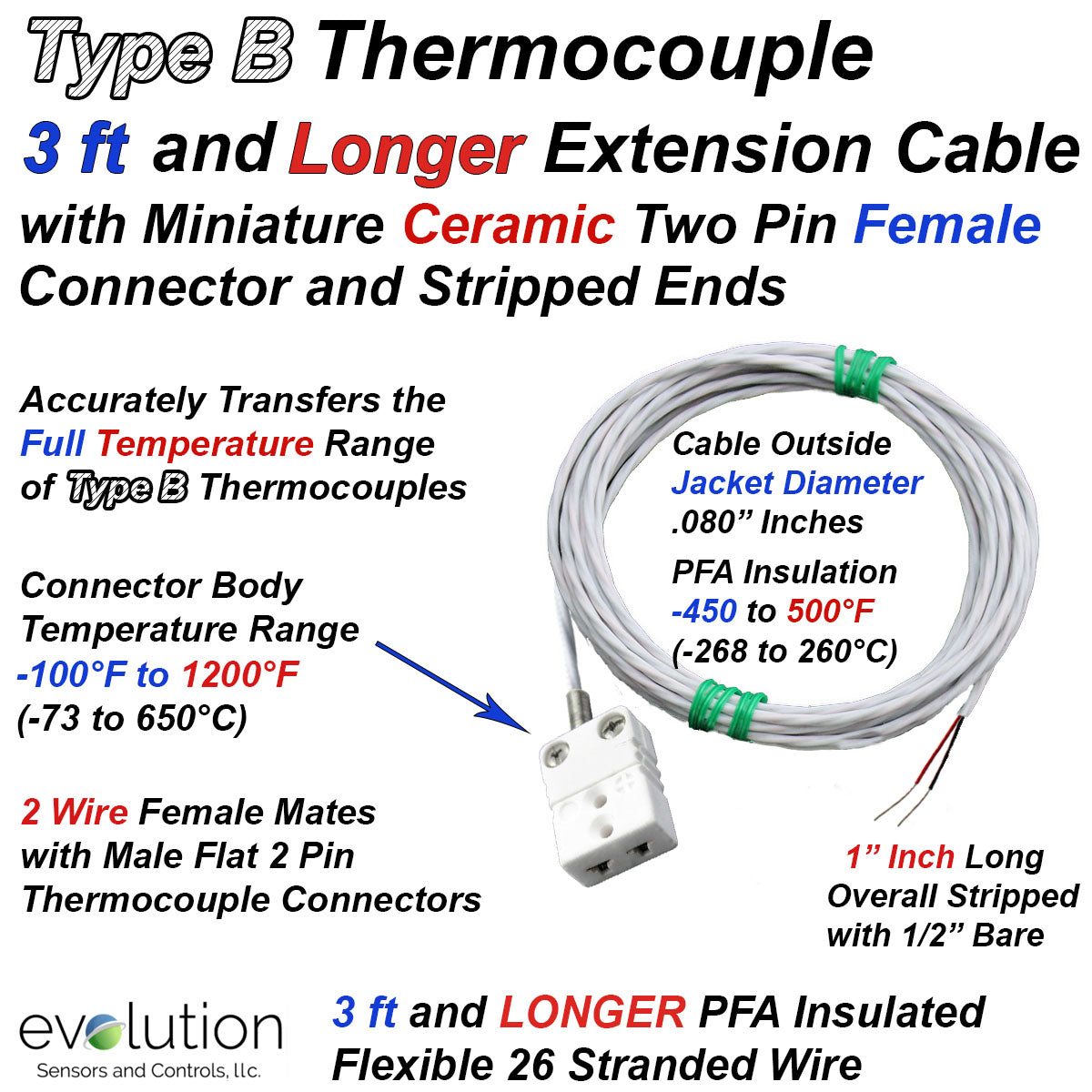

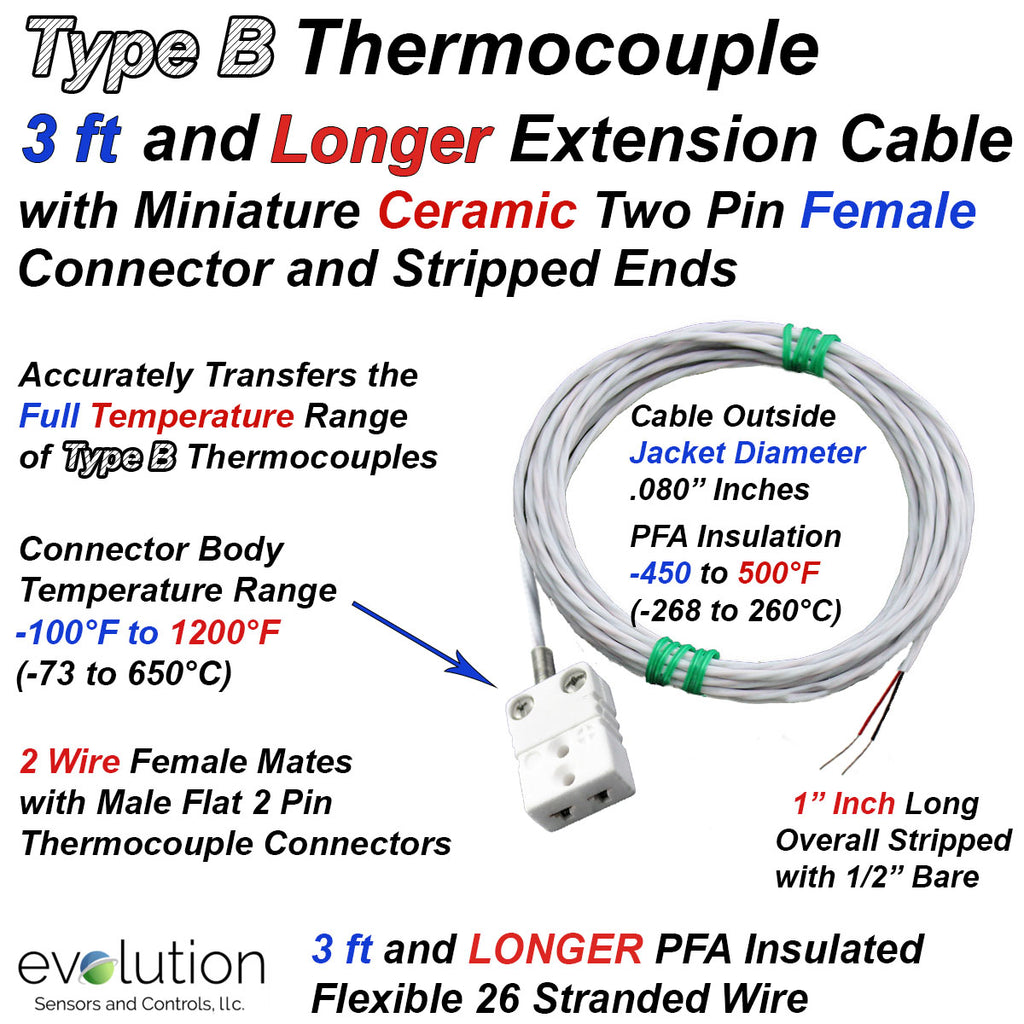

Type B Thermocouple Extension Cable Assembly - 3ft to 20ft Long Wire Leads with Miniature Ceramic Female Connector and Stripped End Terminations

  • 3 ft to 20ft Long extension cable accurately transfers the full temperature range of Type B thermocouples
    • Longer cable lengths can be made in 1 business day - call the Evolution Sensors team at 856 579-7490 for details
  • Miniature Ceramic Female flat 2 pin connector termination mates with miniature male connector from the thermocouple probe and Stripped End bare wire for the instrument terminal screw connection.
    • Connector body rated to -100 to 1200°F (-73 to 650°C)
  • Wire Leads are 2 conductors of Flexible 26 gage stranded (7/34) nickel plated copper with 500°F (260°C) rated PFA insualtion on the single wires and overall jacket
    • Cable outside jacket diameter is approximately .080"
  •  EvoSensors part number: B1X-CAPF-26S-FPFS-20FT-MCCX
