Type B Thermocouple Extension Cable Assembly - 3ft and LONGER Wire Leads with Standard Ceramic Female Connector and Stripped Ends or Miniature Male Connector Termination

Evosensors

$35.00
SKU: B1X-CAPF-26S-FPFS-3FT-SCCF

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

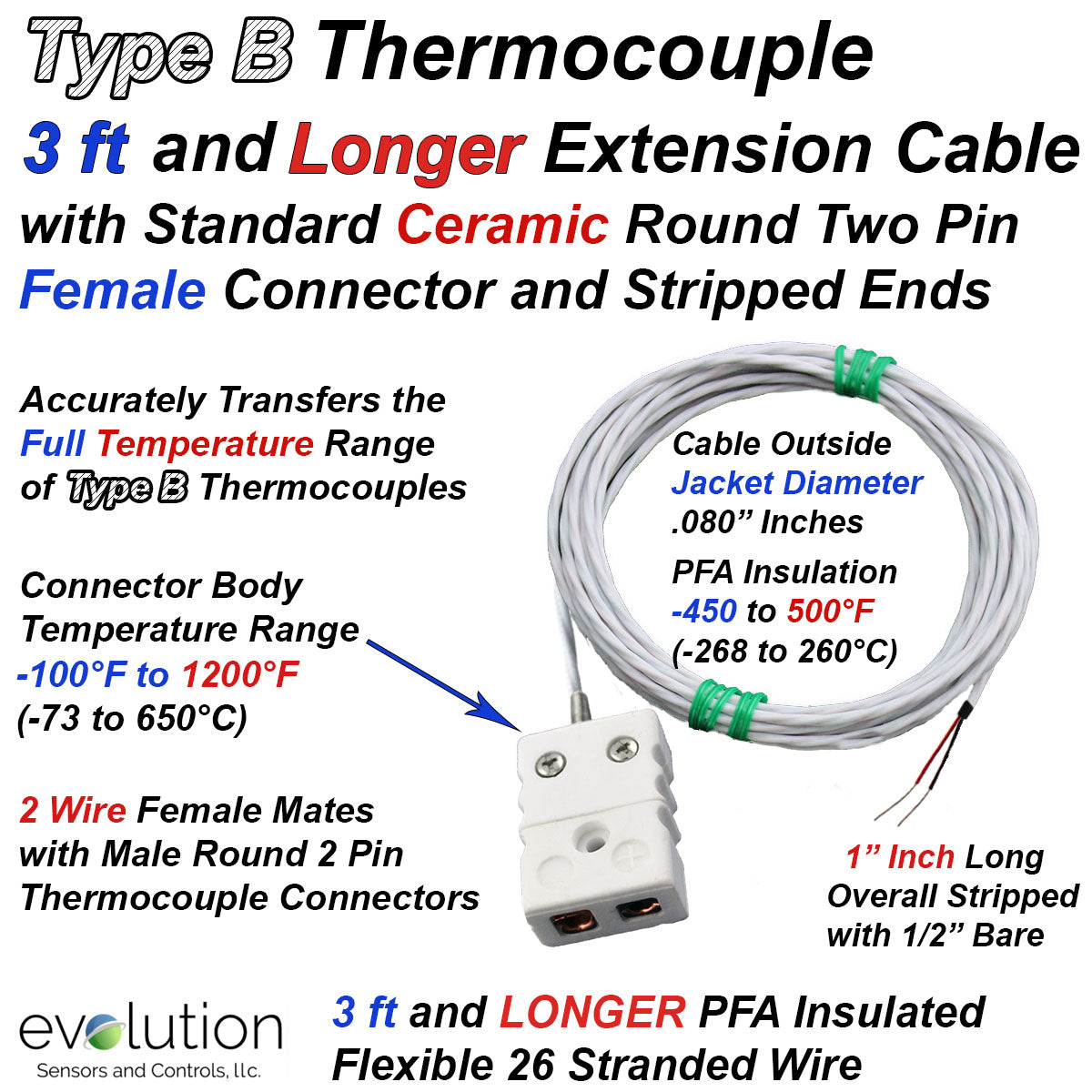

Type B Thermocouple Extension Cable Assembly - 3ft and LONGER Wire Leads with Standard Ceramic Female Connector and Stripped Ends or Miniature Male Connector Terminations

  • 3 ft and Longer extension cable accurately transfers the full temperature range of Type B thermocouples
    • Custom cable lengths can be made in 1 business day - call the Evolution Sensors team at 856 579-7490 for further details

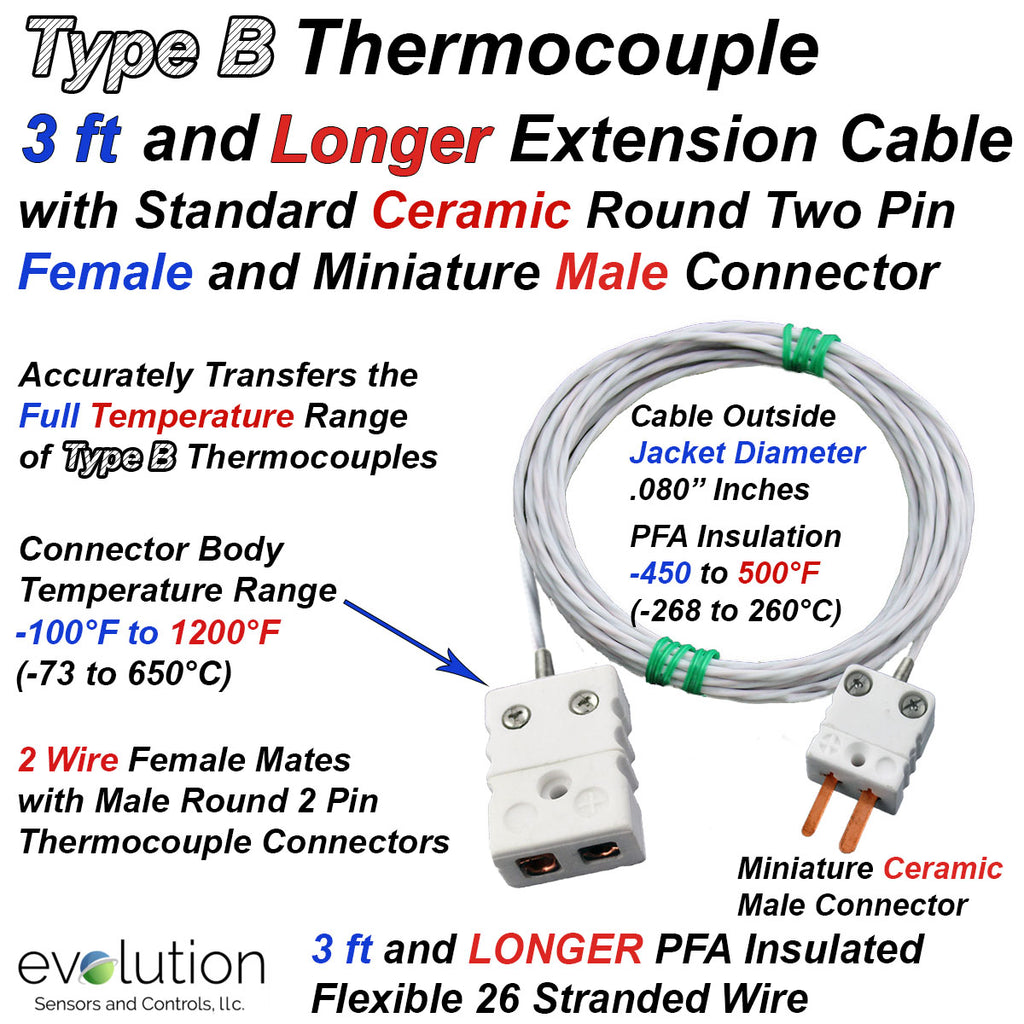

  • Standard Ceramic Female Round 2 pin connector termination mates with miniature male connector from the thermocouple probe and Stripped End bare wire for the instrument terminal screw connection or Miniature Male Ceramic Connector Termination
    • Connector body rated to -100 to 1200°F (-73 to 650°C)
  • Wire Leads are 2 conductors of Flexible 26 gage stranded (7/34) nickel plated copper with 500°F (260°C) rated PFA insualtion on the single wires and overall jacket
    • Cable outside jacket diameter is approximately .080"
  •  EvoSensors part number: B1X-CAPF-26S-FPFS-3FT-SCCF - 3 ft Wire Leads
    • B1X-CAPF-26S-FPFS-6FT-SCCF - 6 ft Wire Leads
    • B1X-CAPF-26S-FPFS-10FT-SCCF - 10 ft Wire Leads
    • B1X-CAPF-26S-FPFS-15FT-SCCF - 15 ft Wire Leads
    • B1X-CAPF-26S-FPFS-20FT-SCCF - 20 ft Wire Leads
