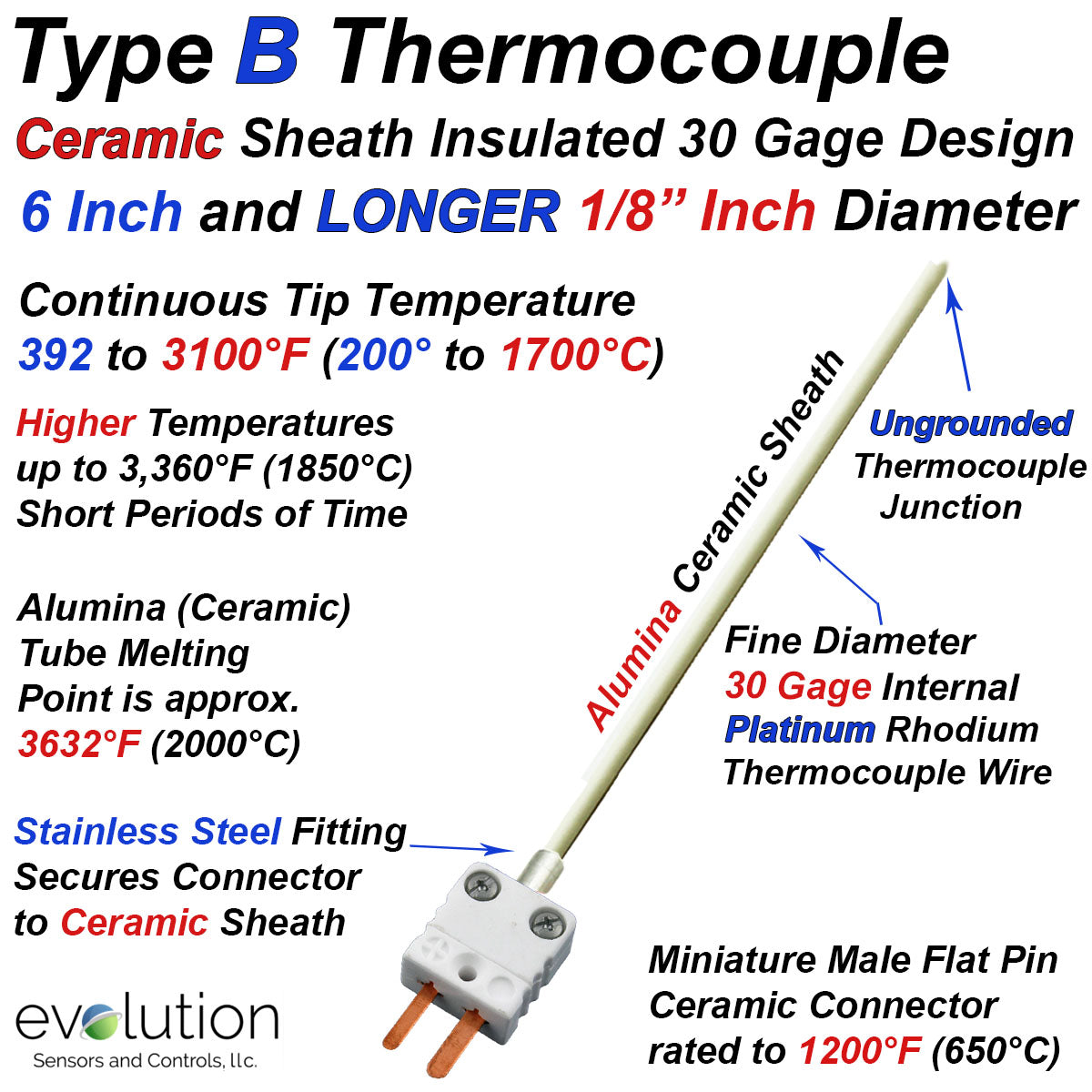

Type B Thermocouple (Platinum Rhodium) with a 6 Inch and LONGER 1/8" Diameter Ceramic Sheath - 30 Gage (.010") Internal Wire with a Miniature Male Ceramic Connector

Evolution Sensors and Controls

$380.00
SKU: B1X-CINS-125-30G-UX-6-MCCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type B Thermocouple (Platinum Rhodium) with a 6 Inch and LONGER 1/8" Diameter Ceramic Sheath - 30 Gage (.010") Internal Wire with a Miniature Male Ceramic Connector

  • Type B Thermocouple made with small diameter 30 Gage (.010" inch .025 mm) for Fast response
  • Continuous Temperature operating range 392 to 3092°F (200 to 1700°C) at the exposed wire tip.
    • Short Term Temperatures up to 3360°F (1850°C)
  • Ungrounded thermocouple junction provides protection to the wire and can minimize electrical interferece to the measurement signal.
  • Alumina (Ceramic) Sheath 6 inch and LONGER 1/8" diameter rigid sheath rated to 3632°F (2000°C)
  • Inner Wire is 30 gage .010 inch (0.25 mm) diameter internal bare wire
  • Instrument Connection: miniature male flat pin Ceramic thermocouple connector with the ceramic body rated to 1,200°F (650°C)
    • The connector can accurately transfer the full range of Type B thermocouples
  • EvoSensors part number: B1X-CINS-125-30G-UX-6-MCCX with 6 inch long ceramic sheath and Location: G-6-6
