Type K Miniature Round Panel Mount Thermocouple Connector

Evosensors

$7.00
SKU: K1X-FEMX-CON-FP-X-MPJR

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type K Miniature Round Panel Mount Thermocouple Connector with Rear Mounting Stainless Steel Bracket

  • Miniature Round Panel Jack Connector design accepts the flat male Type K nickel-chrome and nickel-aluminum thermocouple alloy pins
  • Temperature Range of thermoplastic connector body - 40 to 400°F (-40 to 200°C).
    • Connector can accurately transfer the full range of Type K thermocouples
  • Female flat pins are Polarized with a larger width negative flat pin and smaller width positive pin to ensure proper connection.
  • Rear Mounting Stainless Steel Bracket provides fast and secure mounting to the rear of the panel.
    • Panel cut out  for the connector body is 17.5 mm diameter or 11/16" panel punch.
  • Stainless Steel screws with a combination head design accepting both slotted and phillips head screwdrivers.

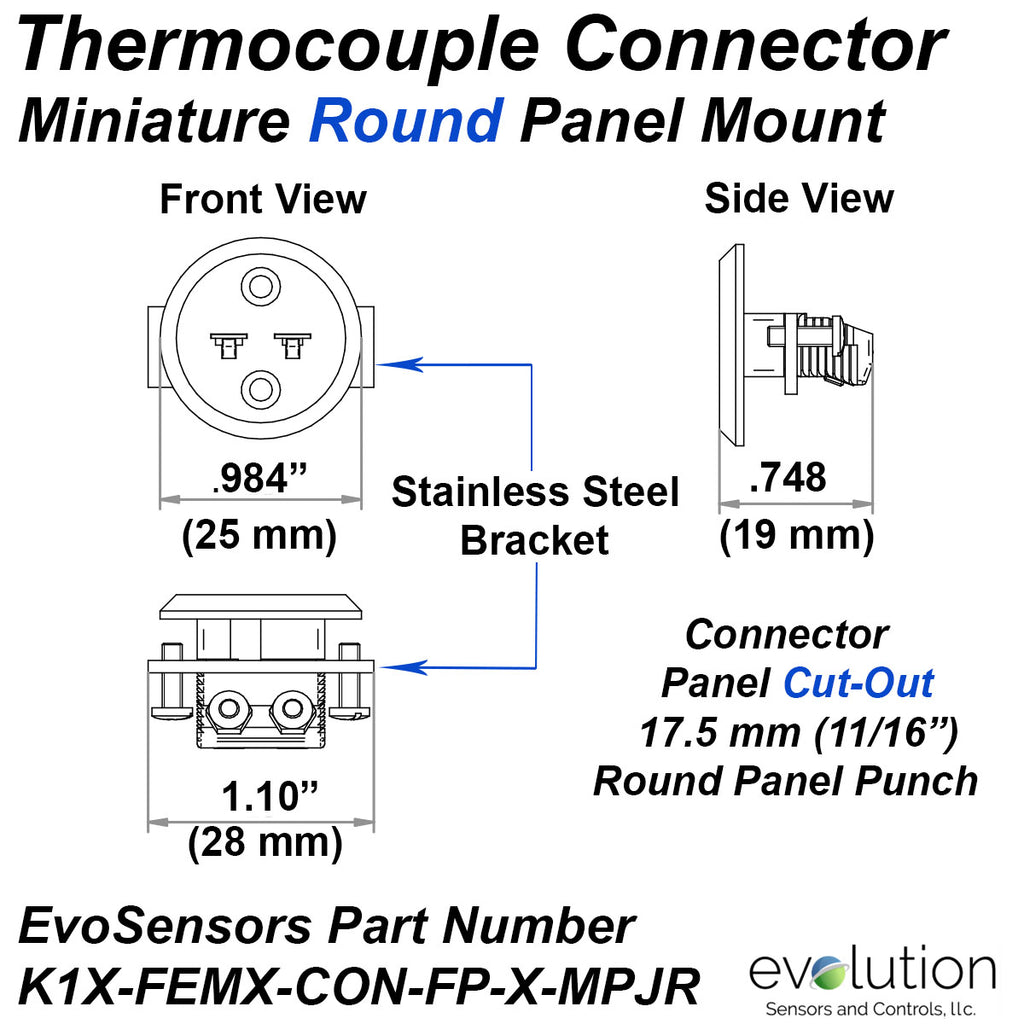

  • Click for connector dimensional drawing in PDF format
  • EvoSensors part number: K1X-FEMX-CON-FP-X-MPJR
  • Location: A-1-15
