Type K Thermocouple Probe 1/8" Diameter 1 Inch Long Ungrounded - 1 ft and Longer Lead Wire with Miniature Male Connector

EvoSensors

$50.00
SKU: K1X-TBSX-125-UX-1-PF24-420-MPCX-GW

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

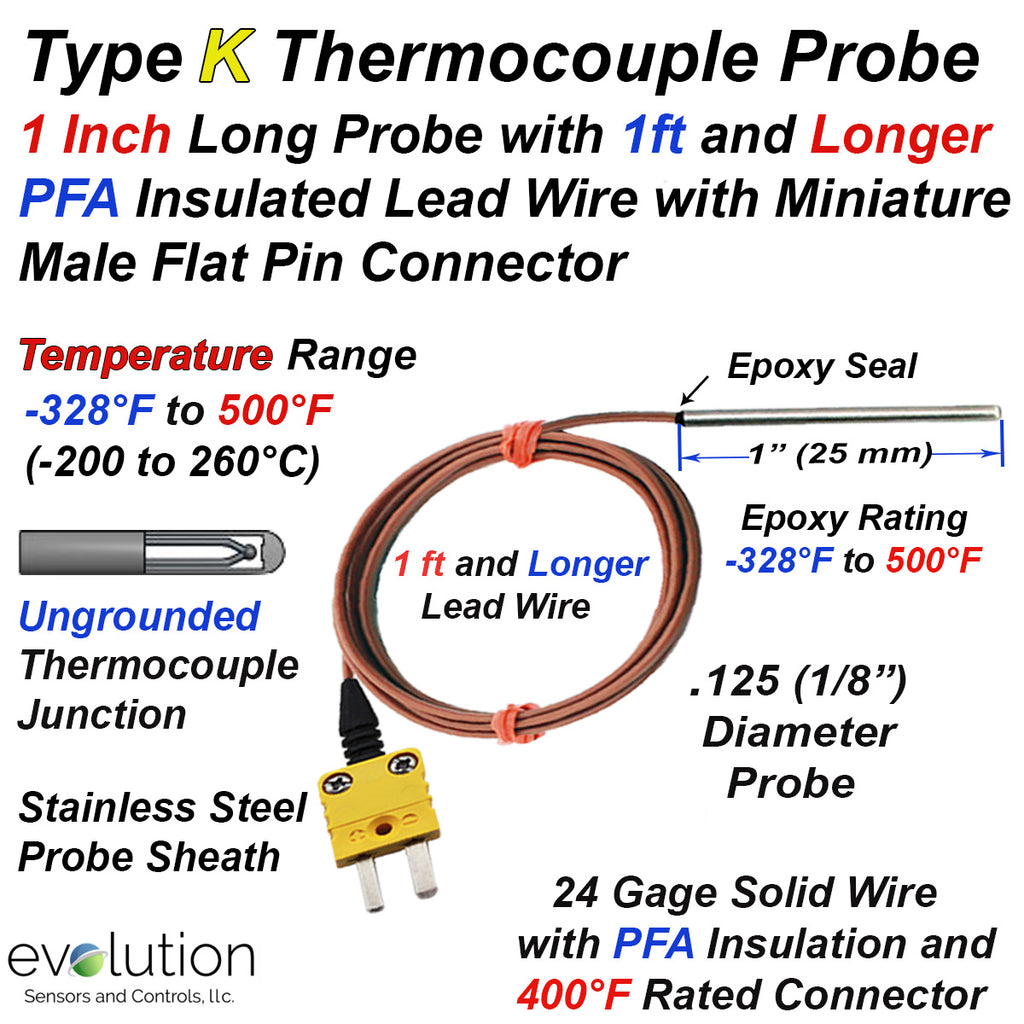

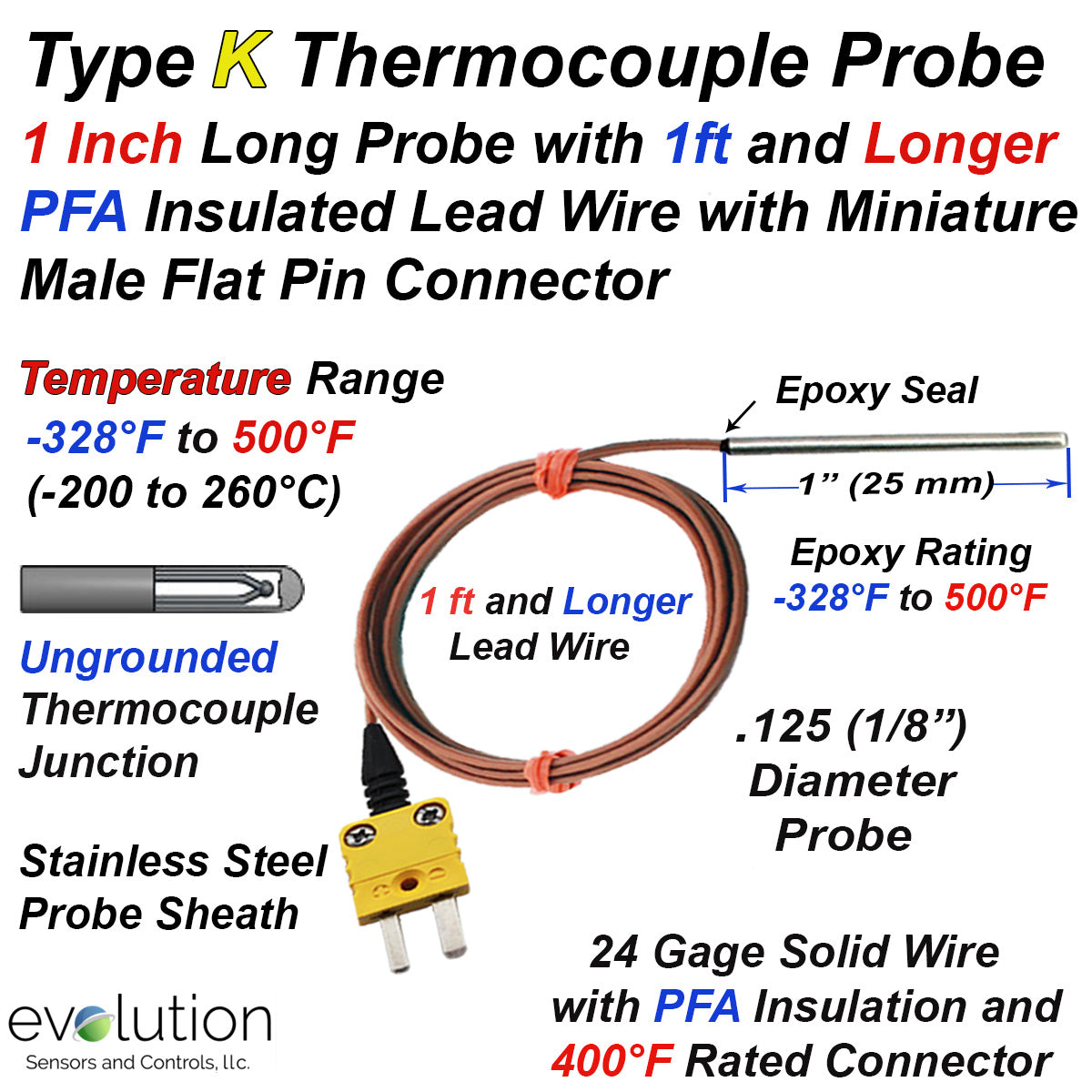

Type K Thermocouple Probe 1/8" Diameter 1 Inch Long Ungrounded - 1 ft and LONGER Lead Wire with Miniature Male Connector

  • 1 Inch long x 1/8" (3.2 mm) diameter stainless steel sheath
  • Temperature Range range of shrink tube transition is -328 to 500°F (-200 to 200°C) with higher temperature designs available.
  • Ungrounded thermocouple junction (isolated) from sheath to minimize electrical interference of the temperature signal
  • Transition and Lead Wire - the probe is a low profile small opening design with 1 ft and LONGER
  • Instrument Connection is a miniature male flat pin Type K thermocouple connector with a -40 to 400°F (-40 to 200°C) rated thermoplastic body.
    • The connector can accurately transfer the full range of Type K thermocouples
  • EvoSensors part number - K1X-TBSX-125-UX-1-PF24-12-MPCX
