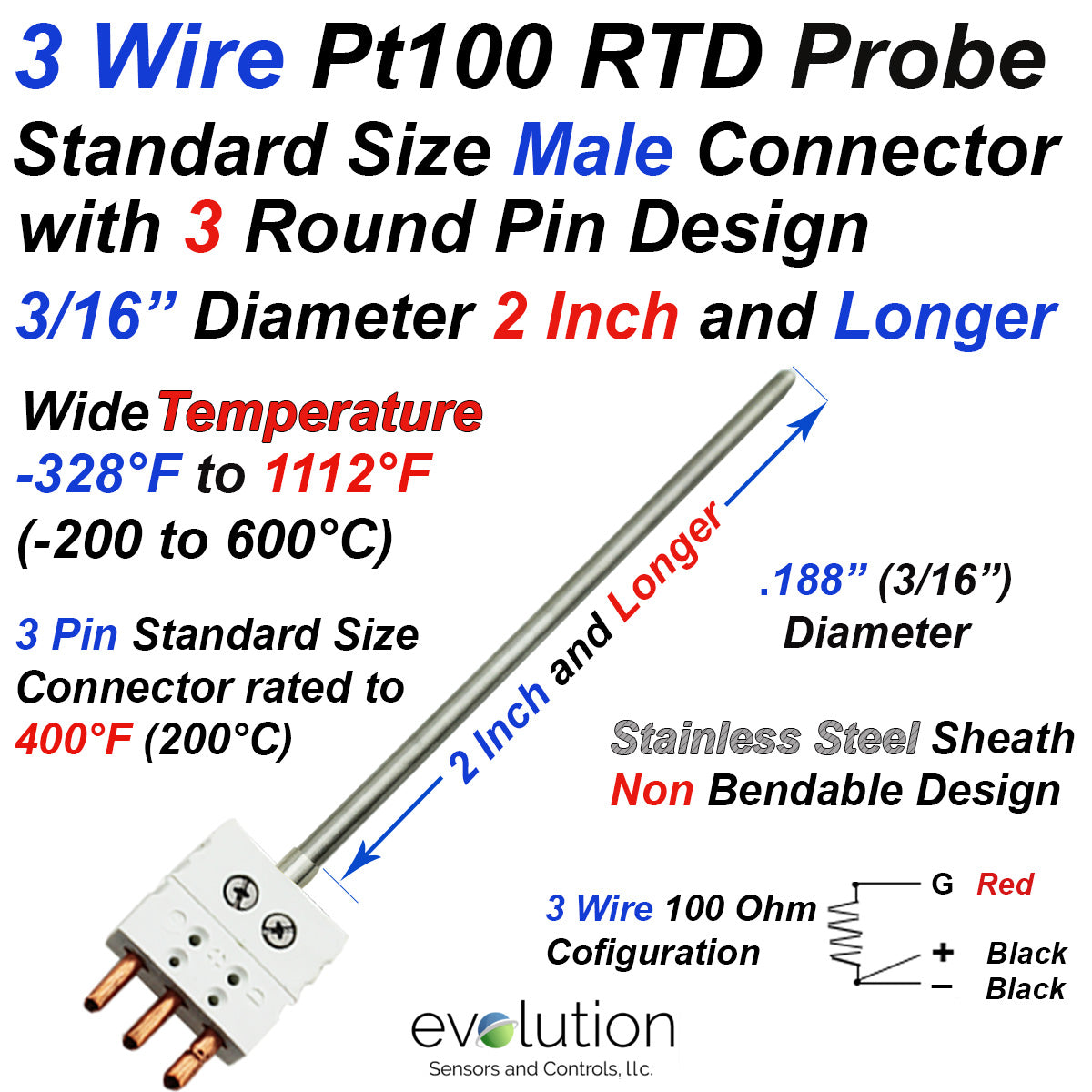

RTD Probe 3 Wire (Pt100) with Wide Temperature Range and Standard Size Male Connector with 3 Round Pin Design 2 Inch and Longer 3/16 Diameter Sheath

Evosensors

$110.00
SKU: P3A-316SS-187-PW-7.5-SPCT

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

RTD Probe 3 Wire (Pt100) with Wide Temperature Range and Standard Size Male Connector with 3 Round Pin Design 2 Inch and Longer 3/16 Diameter Sheath

  • Temperature Range is -320 to 1112°F (-200 to 600°C)
    • Class A (0.06%) accuracy range - 50 to 842 F (-100 to 450°C)
    • Class B (0.12%) accuracy for temperatures beyond the Class A range
  • Pt100 (Platinum 100 Ohm) Class A RTD element 3 wire design.
  • Probe 2 Inch and Longer 3/16 Diameter Stainless Sheath
  • Instrument Connection - 3 Round Pin Standard Size Male Connector. The connector body is made from engineered plastic resin with a maximum temperature range of -40 to 400°F (-40 to 200°C).
  • The design and overall performance capabilities of this product provides temperature measurement solutions in Bio-Pharmaceutical, Medical, Specialty Chemicals, Aerospace, Semiconductor, Electrical Battery Technology, Laboratory Instrumentation, Food Processing, HVAC, Refrigeration and other industries.
  • EvoSensors Part Number: P3A-316SS-188-PW-7.5-SPCT

Consider the following products to complete your Temperature Measurment System

RTD Connector Standard 3 Pin Female  RTD Extension Cable Custom DesignRTD Extension Cable Assembly 3 to 50 ft of Stainless Steel Braided Lead Wire
