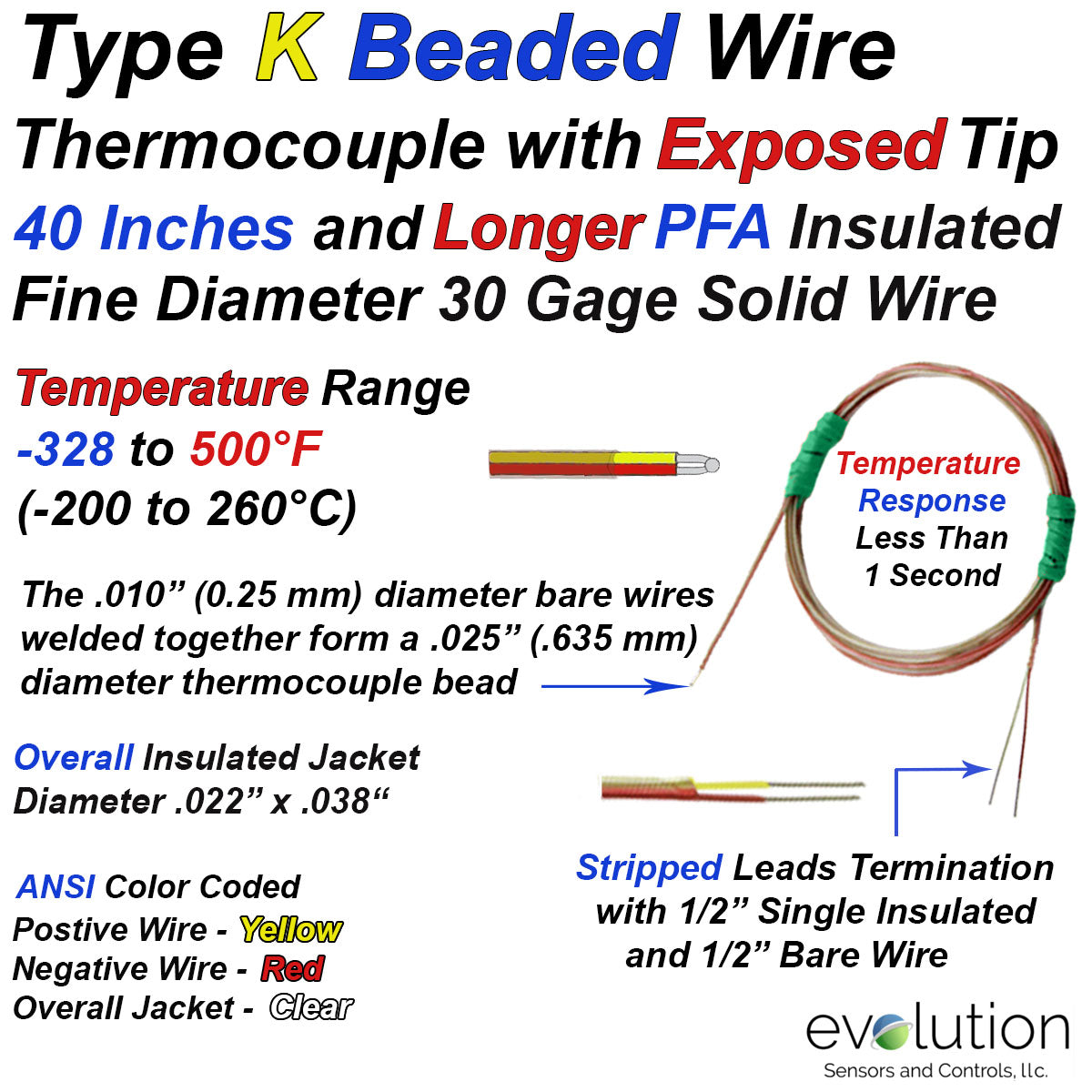

Type K Beaded Wire Thermocouple with Exposed Junction 40 Inches (3.3 ft) and LONGER Fine Diameter 30 Gage PFA Insulated Wire and Stripped Leads

Type K Beaded Wire Thermocouple with Exposed Tip 40 Inches (3.3 ft) and LONGER Fine Diameter 30 Gage PFA Insulated Wire and Stripped Leads

• Exposed welded bead design made from thermocouple grade fine diameter 30 Gage wire with PFA (Plastic Fluoropolymer) insulation with stripped ends termination.
• Temperature Operating range is -328 to 500°F (-200 to 260°C)
  • Type K thermocouples can measure down to -328°F below zero (-200°C) although the best accuracy it can achieve between 32 to -328°F (0 to -200°C) is Standard Limits of Error (±) 2.2°C or (±) 2% whichever is greater”
• Fast Response and precise placement of the measuring area is provided by the miniature sized .025 (.635 mm) or larger exposed thermocouple bead.
• Wire Leads - 40 inches (3.3 ft or 1 meter) and LONGER 30 gage diameter PFA insulated leads
• Wire Construction is 2 wires in a parallel design of 30 gage solid bare wire measuring .010" (0.25 mm) each and individually insulated with a thin .003" PFA (Plastic Fluoropolymer) along with a PFA outside jacket.
  • Overall outside diameter of the wire is a nominal .022" x .038".
  • Color Code is ANSI with yellow positive wire, red negative and clear jacket.
• Instrument Connection - 1 inch long stripped wire lead with 1/2" inch single insulation and 1/2" inch bare wire.
• EvoSensors Part Number: K1X-WBWX-30G-EX-0.25-PFXX-40-STWL - Location: D-4-1
• EvoSensors Part Number K1X-WBWX-30G-EX-0.25-PFXX-48-STWL - Location D-3-7
• EvoSensors Part Number: K1X-WBWX-30G-EX-0.25-PFXX-80-STWL - Location: D-4-3
• EvoSensors Part Number K1X-WBWX-30G-EX-0.25-PFXX-120-STWL - Location: J-1-7
