Single Channel Thermocouple Data Logger - Accepts 8 Different Types of Thermocouples

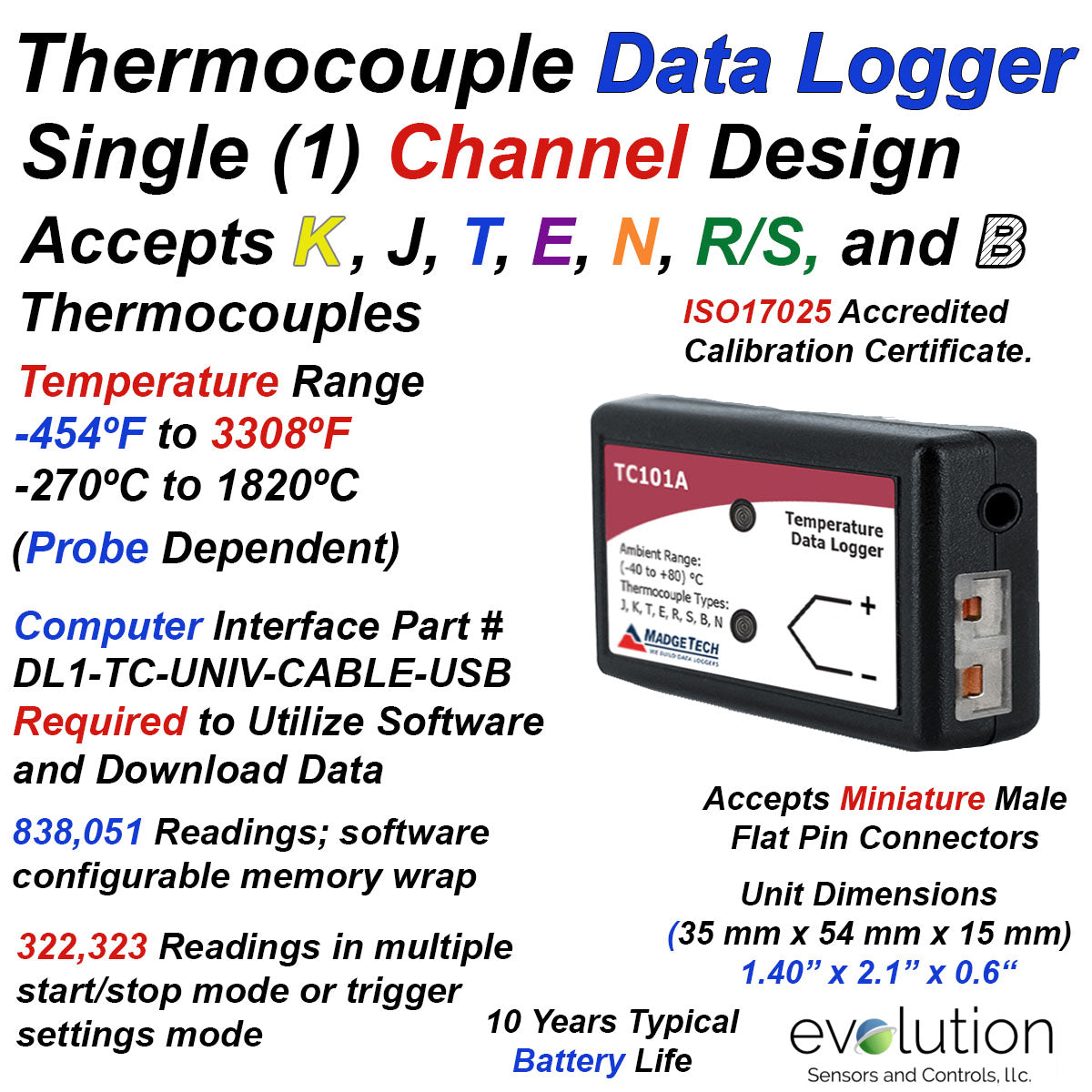

Single Channel Thermocouple Data Logger

• Compact Data Acquisition Logger compatible with 8 different types of thermocouple probes.
• Thermocouple Types: J, K, T, E, R, S, B and N
• Temperature Range as low as negative -454°F to 3308°F (-270 to 1820°C) - dependent of the thermocouple probe
• Calibrated Accuracy ±0.9 °F (±0.5 °C) ISO/IEC 17025 Accredited Certificate.
• Temperature Resolution 0.02 ºF (0.01 ºC)
• Internal Memory has a capacity of up to 838,041 readings.
• 322,323 readings in multiple start/stop mode or trigger settings mode
• Real Time Recording can be achieved with PC to monitor and record data in real time

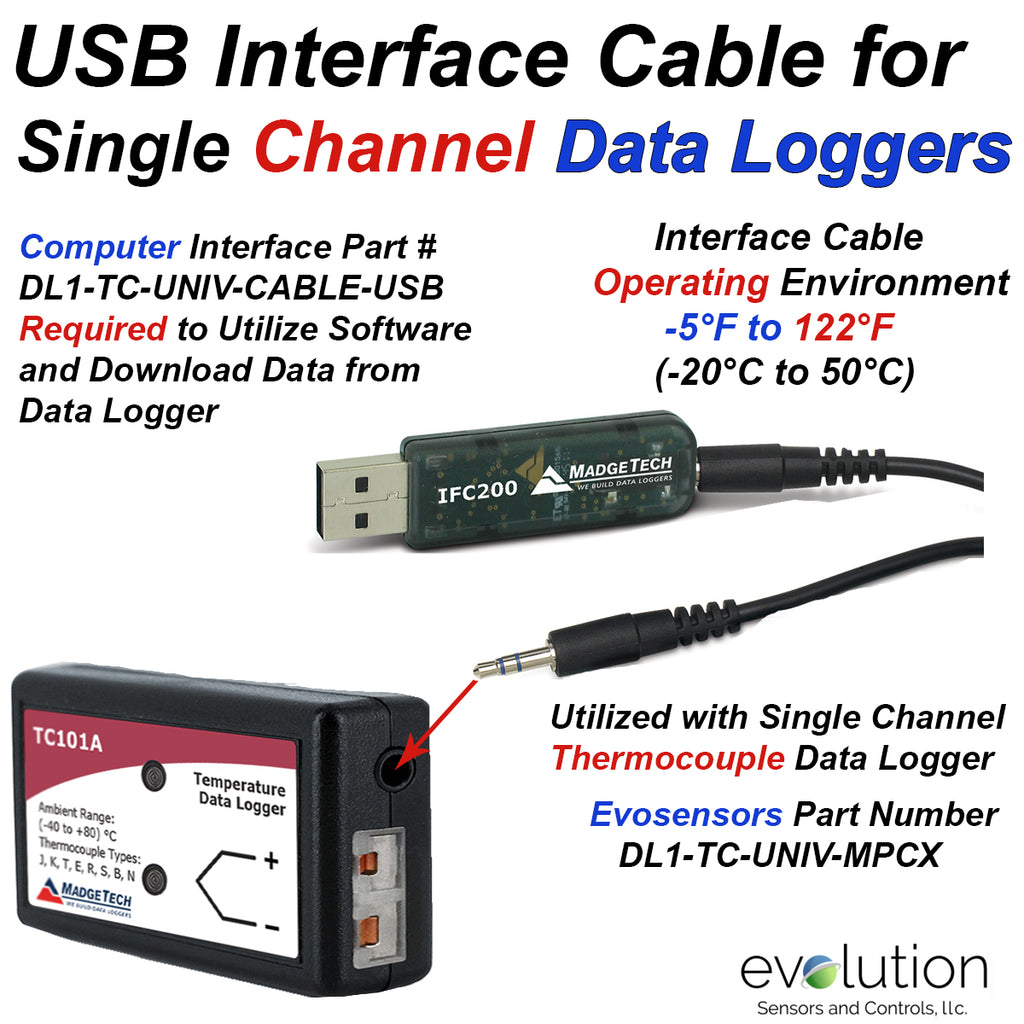

• USB Interface Cable (DL1-TC-UNIV-CABLE-USB) Required to utilize software and download data to a computer
• Standard Software version 2.05.06 or later
• Unit is compatible with MadgeTech 4 Software to present the data in graphic, tabular, and summary formats for reporting.
• Data can also be exported easily to Excel for further analysis and calculations
• Operating System Compatibility - Windows XP SP3 or later
• Sampling Rate ranges from 1 reading every second to 1 reading every 24 hours
• Battery Powered with 10 years typical at a 15 minute reading rate
• 3.6V lithium battery included; user replaceable
• Instrument Details- dimnesions are 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
• Weight is 0.9 oz (24 g)
• Environmental operating temperature range of instrument -40 °F to +176 °F (-40 °C to +80 °C) 0 %RH to 95 %RH non-condensing
• CE Approved.
• Click for Spec Sheet
• EvoSensors Part Number: DL1-TC-UNIV-MPCX
• Location: J-4-10
