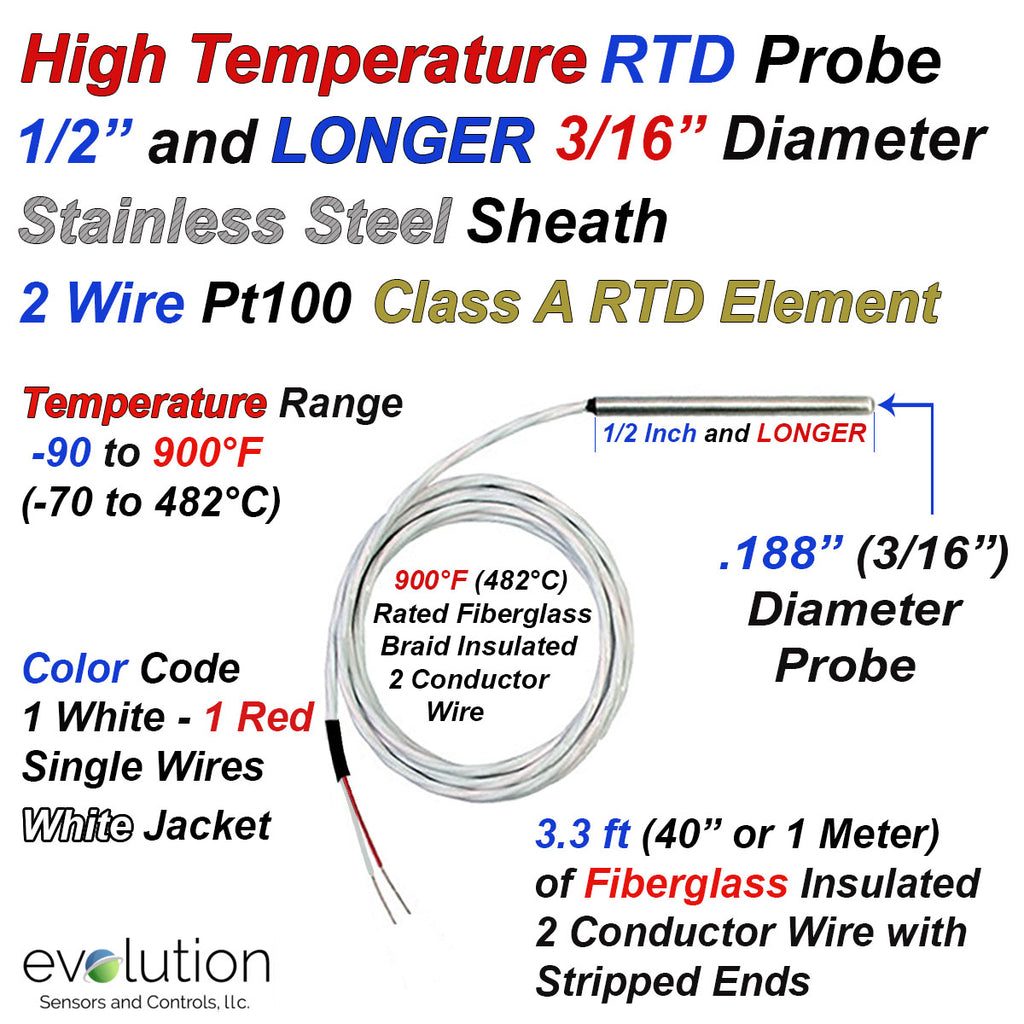

2 Wire Pt100 RTD Probe 1/2 Inch and LONGER x 3/16" Diameter Sheath with Fiberglass Insulated Wire Leads

2 Wire Pt100 RTD Probe 1/2 Inch and LONGER x 3/16" Diameter Sheath with Fiberglass Insulated Wire Leads and Stripped Ends Termination

• RTD Probe 3/16" (4.75 mm) diameter probe with a 1/2 inch and LONGER Stainless Steel Sheath and 1 Meter (3.3ft) of Fiberglass braided wire leads.
• Temperature Operating range is -90 to 900°F (-70 to 482°C)
• Pt100 (Platinum 100 ohm)  2 wire Class A accuracy assembly with high purity mineral insulation to provide temperature stability.
  • .385 Ohm change per degree C
• Transition to Wire leads - Ceramic cement provides the transition from the probe to 40 inches (3 ft or 1 meter) of fiberglass braid insulated 900°F (482°C) rated wire.
• Wire Construction is a 2-conductor 24 gage stranded nickel plated wire with each conductor and overall jacket insulated with fiberglass braid. Overall outside diameter is .090".
• Wire Color code is  1 White  and 1 Red inner conductors with overall White jacket.
• Instrumentation Connection: Stripped Wire Ends
• Excellent Solution for Higher Temperature measurement applications requiring accuracy and stability in space restricted areas related to process development, product development, testing, machinery, and equipment in Bio-Medical Pharmaceutical, Aerospace, Food Processing, HVAC, Refrigeration, and other industries
• EvoSensors Part Number: P2A-TBSX-188-PX-1/2-FGXX-40-STWL - 1/2 Inch  Long Probe Sheath
  • P2A-TBSX-188-PX-1-FGXX-40-STWL - 1 Inch Long Probe Sheath
  • P2A-TBSX-188-PX-2-FGXX-40-STWL - 2 Inch Long Probe Sheath
  • P2A-TBSX-188-PX-3-FGXX-40-STWL - 3 Inch Long Probe Sheath
