Wire Grommet (24 Gage and Similar Sized Wire) for Miniature Thermocouple Connectors

Evosensors

$0.25
SKU: FIT-GROM-CON-FP-.059-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Wire Grommet (24 Gage and Similar Sized Wire) for Miniature Thermocouple Connectors

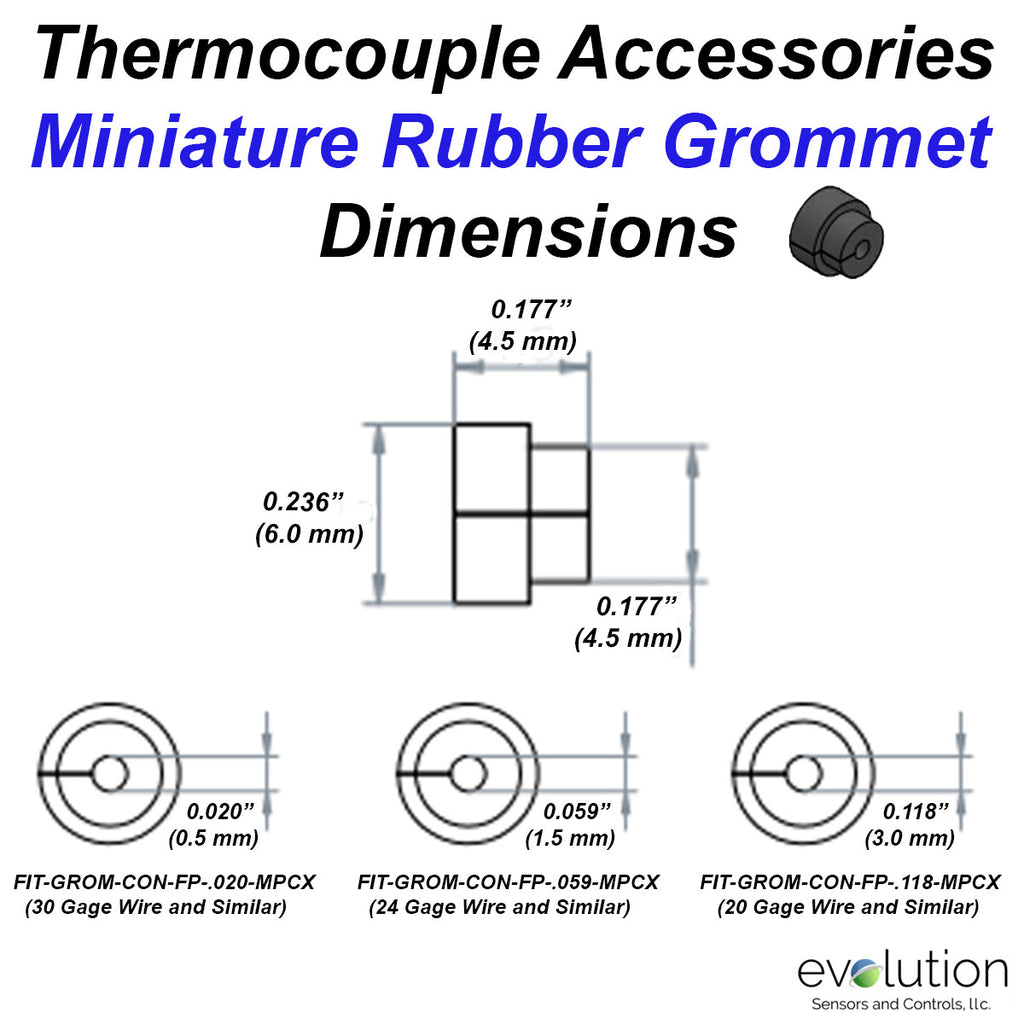

  • .059" Inch (1.5 mm) Opening and Slit for 24 Gage parallal pair of thermocouple wire.
  • Temperature Operating range -40°F to 400°F (-40 to 200°C)
  • Designed for 24 gage (.056″ x .092″) and Similar Dimensioned parallel insulated thermocouple wire pairs.
    • Fits in the internal rear cutout of miniature thermocouple connectors
    • Compresses on wire when connector cap is secured in the connector body.
    • Can provide support of wire with .078" (2 mm) and slight larger diameters. such as our 26 gage stranded and twisted 3 conductor RTD wire
  • Slit Design allows the wire to be quickly pressed into position from the side rather than needing to thread the wire through the opening.
  • Ingress Protection for the fine diameter wire entrance into miniature thermocouple connector and some strain relief for the wire.
  • Evosensors Part Number:  FIT-GROM-CON-FP-.059-MPCX
  • Location: A-2-43
