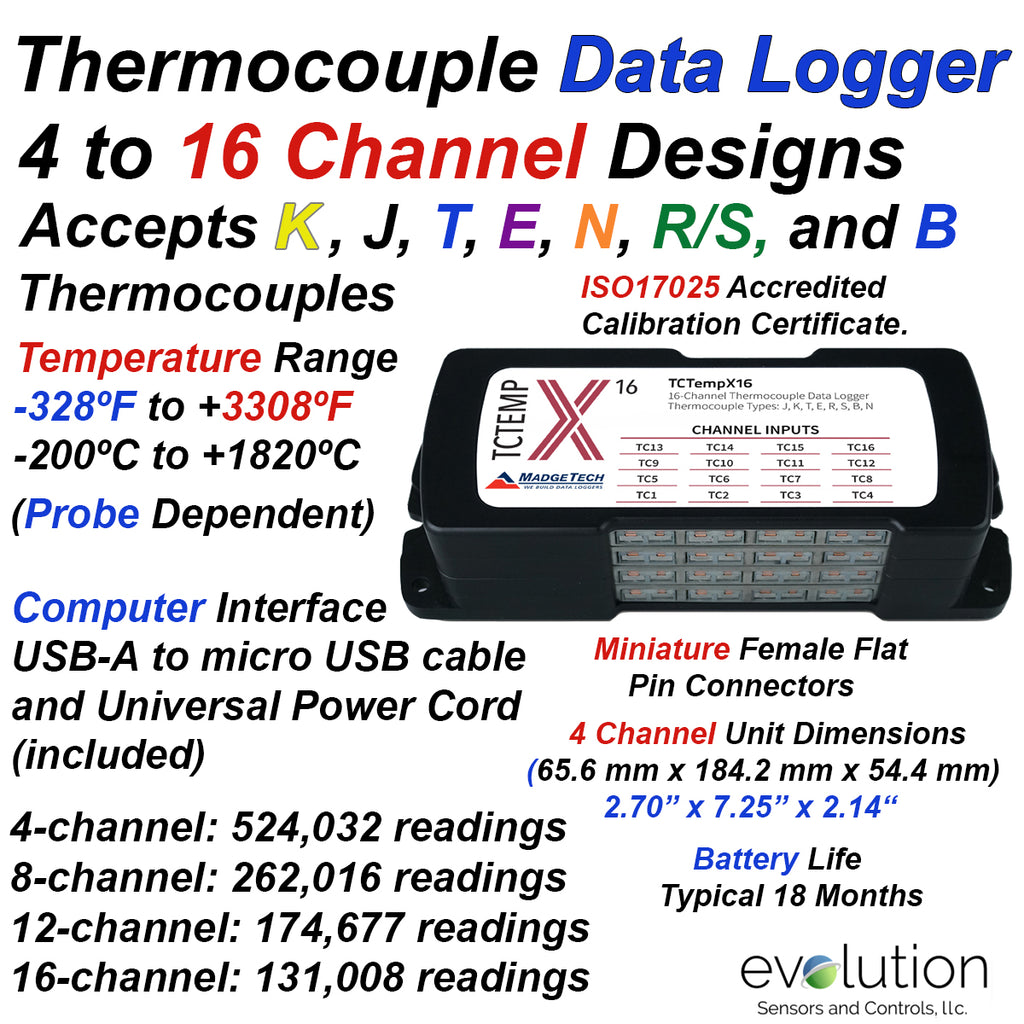

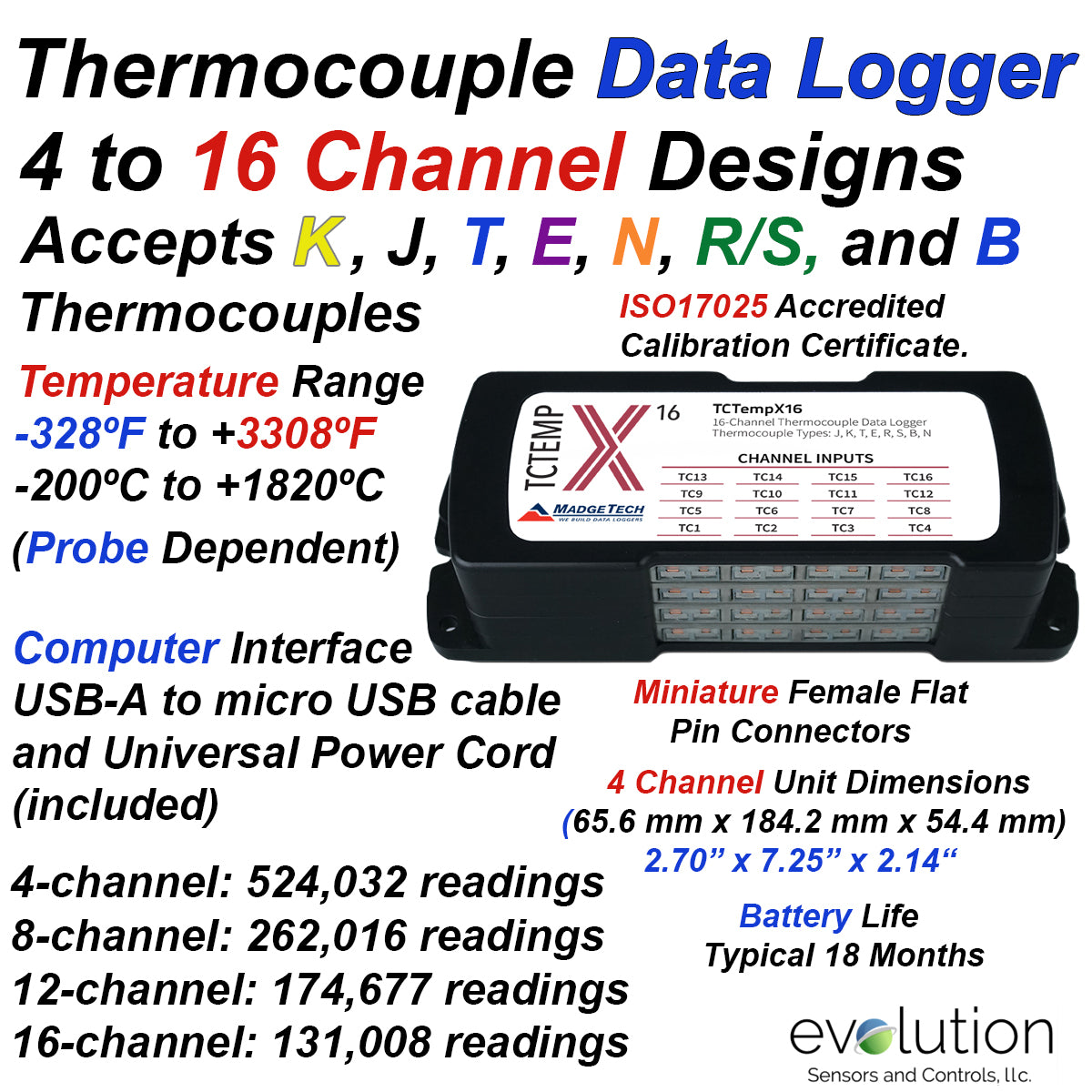

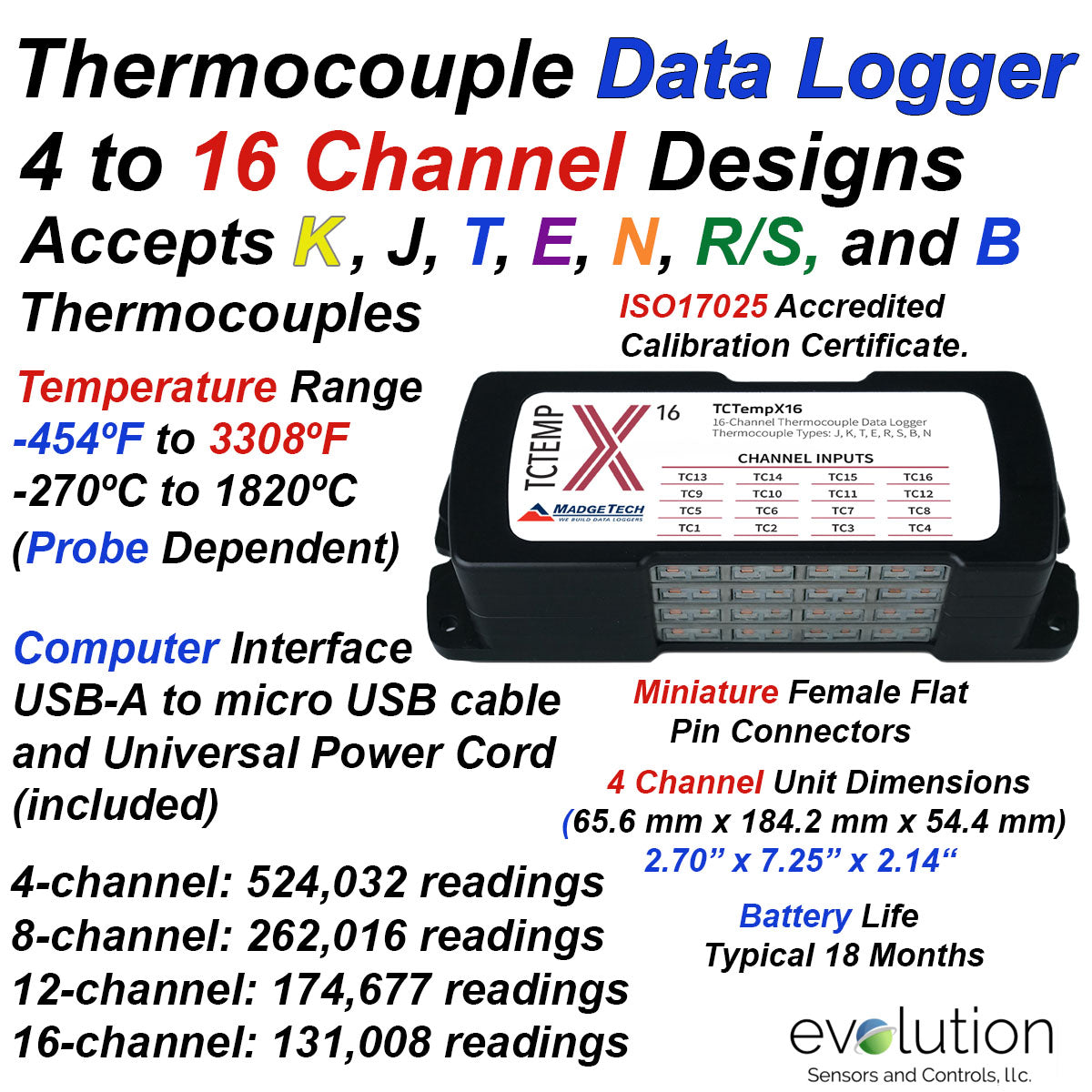

Thermocouple Data Logger 4 to 16 Channels - Accepts Type J, K, T, E, R, S, B, N Thermocouples with a Miniature Male Flat Pin Connector

Evosensors

$715.00
SKU: DL4-UNIV-TC-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Thermocouple Datalogger 4 to 16 Channels - Accepts Type J, K, T, E, R, S, B, N Thermocouples with a Miniature Male Flat Pin Connector

  • Memory: 4-channel: 524,032 readings, 8-channel: 262,016 readings, 12-channel: 174,677 readings, 16-channel: 131,008 readings
  • Rate of Readings: 4 Hz (4 readings per second) up to 1 reading every 24 hours
  • Individual Cold Junction compensation for each channel  providing increased accuracy and response time
  • Operating Environment -20 ºC to +60 ºC (-4 ºF to +140 ºF), 0 %RH to 95 %RH non-condensing
  • Instrument Connection - accepts Thermocouples with a Miniature Male Flat Pin Connector. The unit has 4 to 16 miniature female flat pin connectors internally mounted and slightly recessed
  • Includes Data Management Software for PC's and ISO17025 accredited calibration certificate
  • External Power or User Replaceable Battery with 18 months typical usage.
    • Includes Universal Power Cord
  • Pushbutton or Programmable Start.
    • Includes USB A to Micro USB cable for transferring data to a PC
  • Black Anodized Aluminum Case - 4-Channel Dimesions 2.70 in x 7.25 in x 1.22 in  (65.6 mm x 184.2 mm x 31.0 mm) Weight 13 oz (368 g)
    • 8-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm), weight 13 oz (368 g)
    • 12-channel: 2.70 in x 7.25 in x 1.68 in (65.6 mm x 184.2 mm x 42.7 mm), weight 20 oz (580 g)
    • 16-channel: 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm), weight 28 oz (800 g)
  • DL4-UNIV-TC-MPCX / Location: G-4-12
