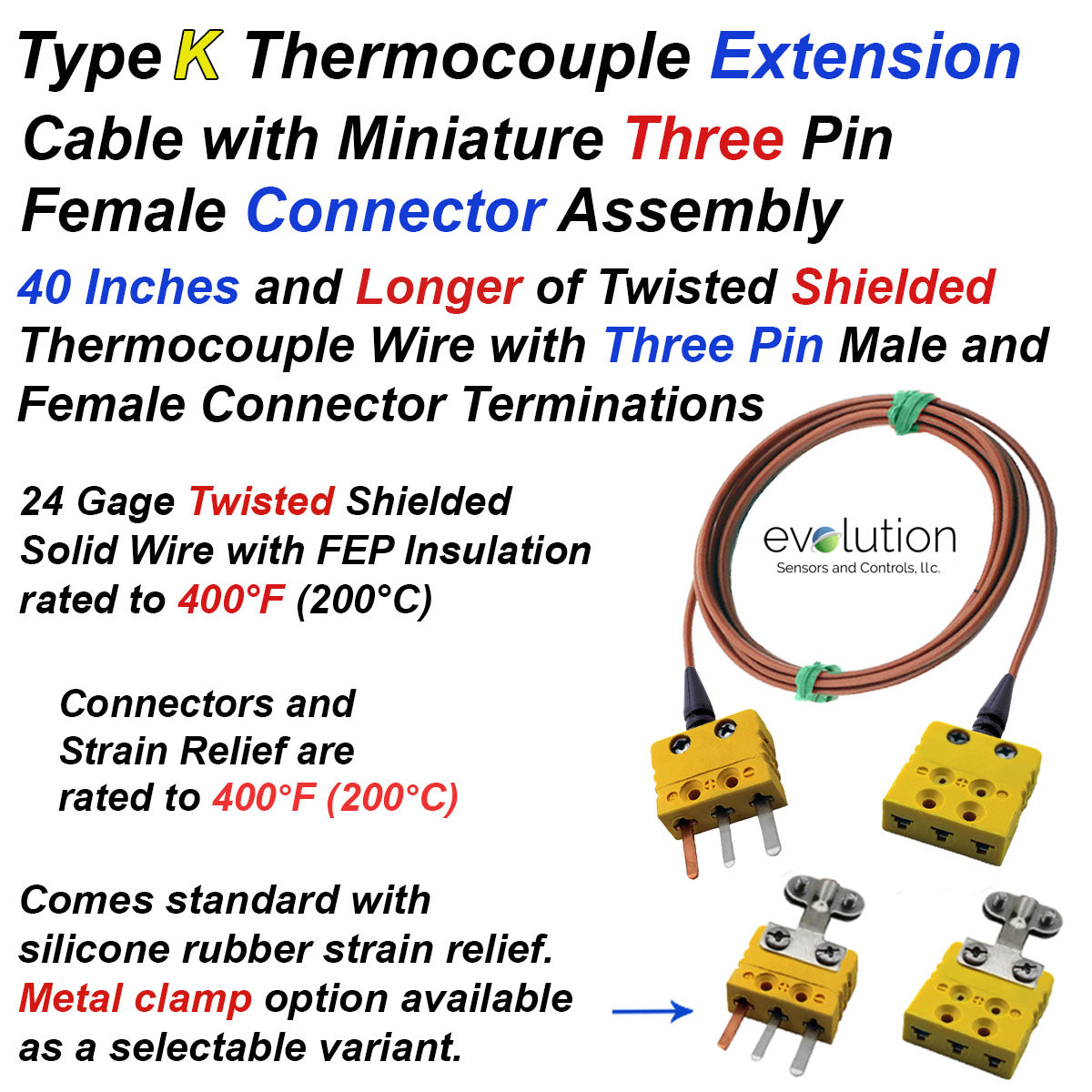

Type K Three Pin Thermocouple Extension Cable - 40 Inches and Longer of Twisted Shielded Wire with Miniature Three Pin Female Connector and Miniature Three Pin Male Connector

Type K Three Pin Thermocouple Extension Cable - 40 Inches and Longer of Twisted Shielded Wire with Miniature Three Pin Female Connector and Male Connector Terminations

• 3 Pin Connector with the Twisted Shielded thermocouple wire continues the Ground Link from the thermocouple probe and provides Additional Protection from Electrical Noise Signal Interference
• Wire Temperature Operating range -328 to 400°F (-200 to 200°C)

• 24 Gage (.020") solid thermocouple wire with a Twisted construction.
  • Aluminum Mylar shielding is wrapped over the 2 internal FEP insulated wires.
  • Ground Wire is 24 gage solid nickel plated copper and it is in contact with shield to provide additional grounding options
  • FEP Insulation on the 2 individual thermocouple wires and the outside jacket with a maximum temperature range of 400°F (200°C) rating and approx. 0.100" overall maximum dimension

• Instrument Connection - Miniature 3 pin male and female flat pin connectors
  • Plastic connector body rated to -40 to 400°F (-40 to 200°C)
  • Connector and Wire are capable of accurately transferring the full temperature range of Type K thermocouples
• Color Code is ANSI with a yellow insulated nickel chrome positive wire, red insulated nickel aluminum negative wire and brown overall jacket with yellow  connectors
• Strain Relief Options - Available with either a standard silicone rubber strain relief or a metal clamp alternative for added durability.
• EvoSensors Part Number:
• K1X-CAFPTS-24G-FPMF-40-MPCT - (40 Inch Length / Strain releif)
  • K1X-CAFPTS-24G-FPMF-CC-40-MPCT  - (40 Inch Length / Metal Clamp)
