Type R and S Thermocouple Connector Adapter - Accepts Miniature Flat Pin Male and Converts to Standard Round Pin Male

Evosensors

$15.00
SKU: RSX-FMTR-CON-SMMF-AB-MSPC

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

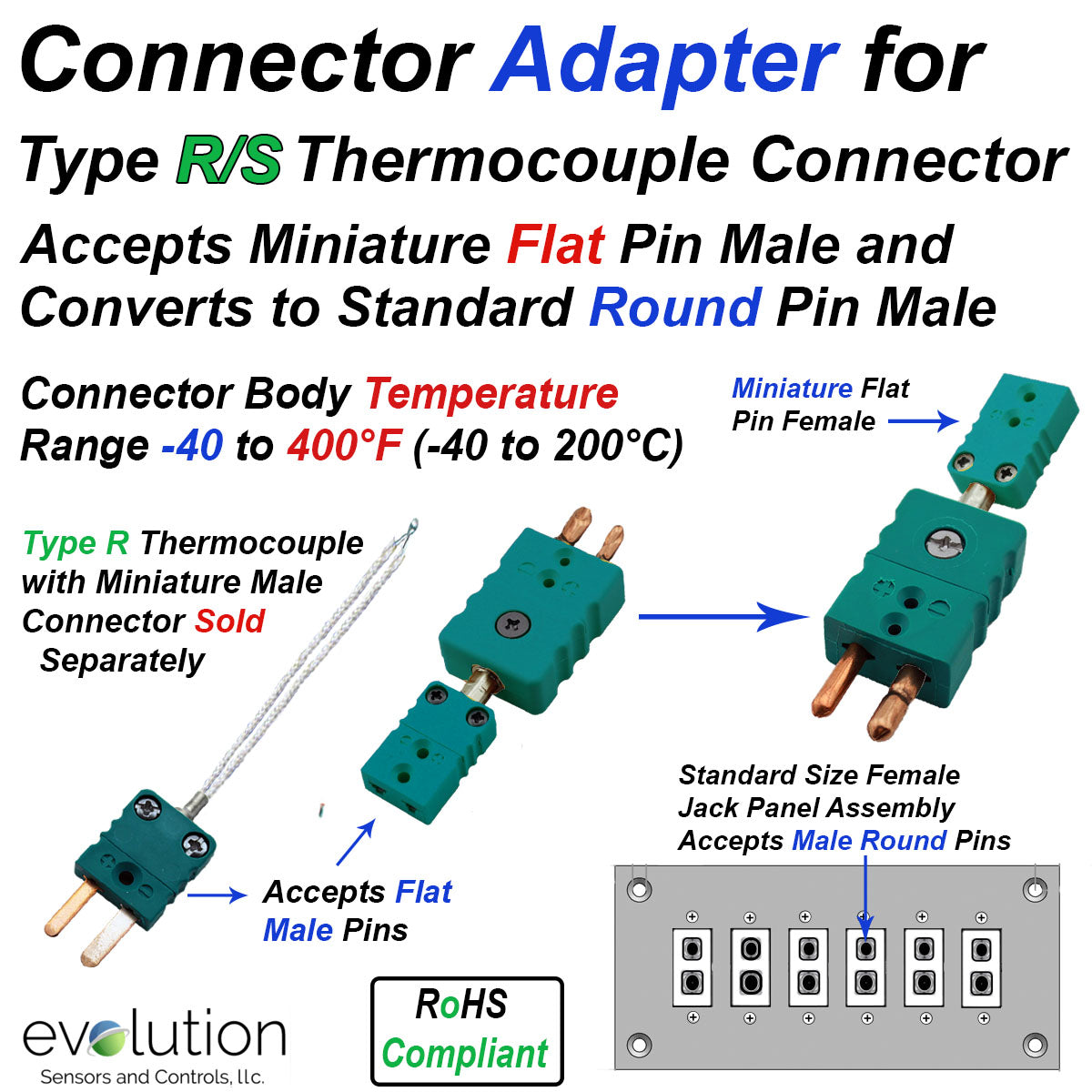

Type R/S Thermocouple Connector Adapter - Accepts Miniature Flat Pin Male and Converts to Standard Round Pin Male

  • Accepts Miniature Size Flat pin male thermocouple connector and converts to Standard Round pin male.
    • Commonly used with Control Panels utilizing Standard Size Female Jack Panel connectors and thermocouple probes with miniature flat pin male connectors
  • The Type R and S  thermocouple connector adapter is a rugged molded design made from high quality glass filled Engineered Thermoplastic material.
    • RoHS Compliant
  • Temperature Range of Connector Body: -40 to 400°F (-40 to 200°C).
    • Connector is capable of accurately transferring the full range of Type R amd S thermocouples
  • All Connector Pins are made with Type R and S compensation alloys.
    • Connector pins are polarized to assist with the proper positive and negative alloy connection.
    • The Negative Alloy 11 pin is larger diameter or width as compared to the Positive copper pin
  • EvoSensors part number: RSX-FMTR-CON-SMMF-AB-MSPC
