Type T Miniature Panel Mount Thermocouple Connector

Evosensors

$6.30
SKU: T1X-FEMX-CON-FP-X-MPJF

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

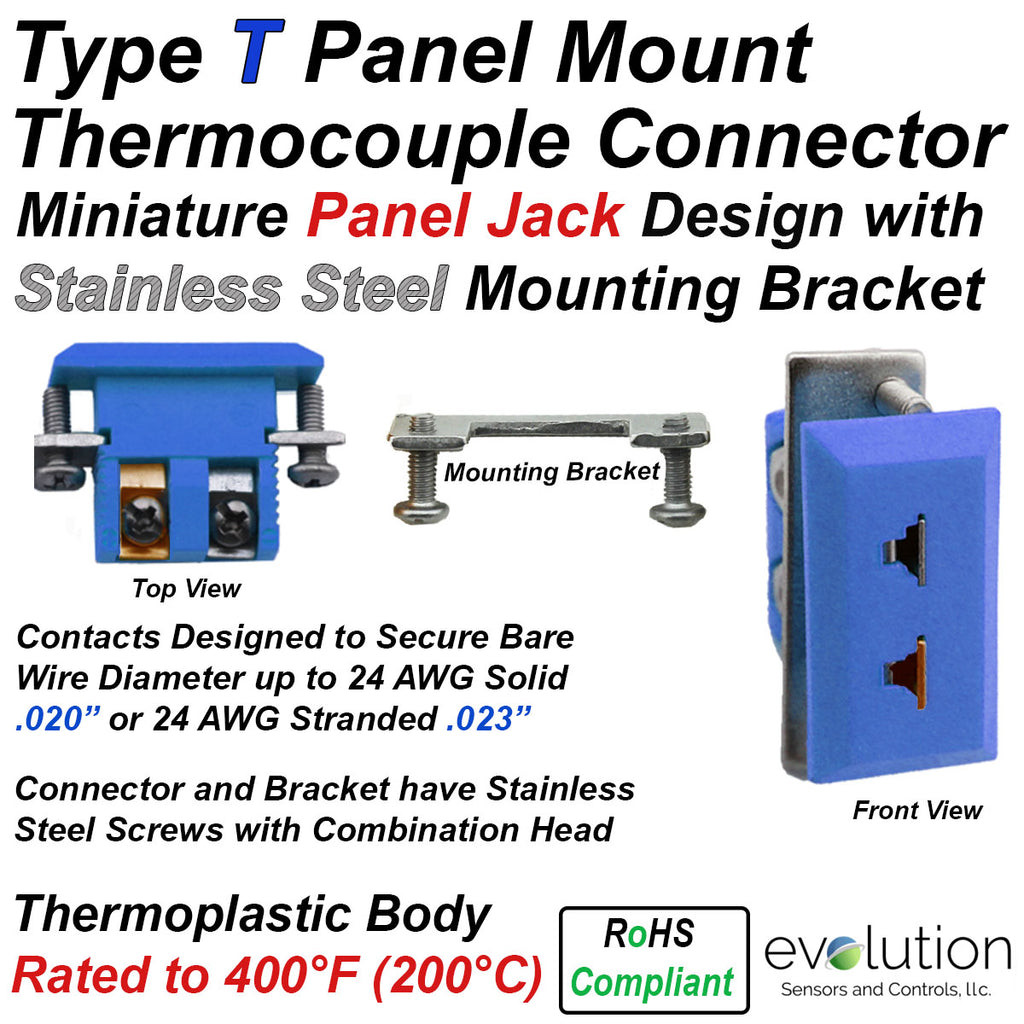

Type T Miniature Panel Mount Thermocouple Connector- Rectangular Design with Rear Mounting Stainless Steel Bracket

  • Type T Miniature Thermocouple Panel Jack Connector designed to mate with the connectors designed with flat male thermocouple pins
  • Temperature Operating range of the connector body is -40 to 400°F (-40 to 200°C). The connector is capable of accurately transfering the full temperature range of Type T thermocoupels
  • Female flat pins in the panel mount connector have a larger width negative constantan pin and smaller width positive copper pin to ensure proper connection.
  • Rugged Mounting bracket is made from Stainless-Steel provides fast and secure mounting.
  • Terminal Contact washers provides an easy to use although secure thermocouple wire connection point.
    • A molded barrier is built into the thermocouple connector body and assists in preventing a short circuit of the thermocouple signal by the keeping the wire separate from each other.
  • Stainless Steel screws with a combination head design accepting both slotted and phillips head screwdrivers.
  • Connector Body dimensions are .925" (23.5 mm) wide by .551" (14 mm) high by .748" (14 mm) deep with a .110" (28 mm) long attachable rear mountable stainless steel bracket
  • EvoSensors part number: T1X-FEMX-CON-FP-X-MPJF
  • Location: A-4-18

Consider the following Accessories to complete your Panel Mount Connector System

   Miniature Thermocouple Connectors, Miniature Male, Type T  Type T Thermocouple Wire 24 Gage PFA Insulated
